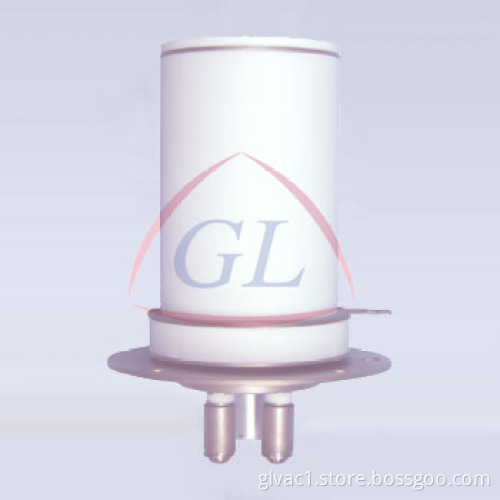

Hydrogen Thyratron (GL7620)

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu
Payment Type:	T/T

Product Description

GLVAC manufactures complete types of thyrathons, includes GL series thyrathons, which are widely used in scientific research, military, medical treatment and industry such fields, which include laser instruments, radar, pulse modulator, medical linear accelerator, tommy bar protection and other electric instruments and equipments.

GLVAC is a global leading manufacturer of vacuum products, with more than 40 years experience in vacuum and electric components. GLVAC gets GJB9001B-2009, ISO9001: 2008, TS16949, and UL certification.

GLVAC also manufactures Ceramic Vacuum capacitors, Ceramic HV Vacuum Relays, Ceramic Vacuum Interrupters, DC Contactors, Pulse Magnetrons and other vacuum electrical apparatuses. You are welcome to visit GLVAC website and will get high quality with competitive price.

Anode Parameter
Peak forward anode voltage:	20kV
Peak inverse anode voltage:	20kV
Peak anode current:	600A
Average anode current:	0.5A
Rate of rise of anode current:	2000A/μs
Plate break down factor:	10×109VApps
Maximum pulse power:	6MW
Griddrive
Unloade dgrid drive pulse voltage:	200V~500V
Grid pulse duration:	2μs
Rate of rise of grid pulse:	1kV/μs(min)
Peak inverse grid voltage:	200V(max)
Forward impedance of grid circuit:	50Ω~500Ω
Heater
Heater voltage:	6.3V±5%Vac
Heater current:	10A~14A
Minimum heater time:	5min
Mechanical
Mounting position:	Any
Dimension:	See outline
Cooling way:	Forced-air
Cross reference
L-3:	L-4958
Perkin Elmer:	HY-10
E2V:	8503AF
EIA:	7620
