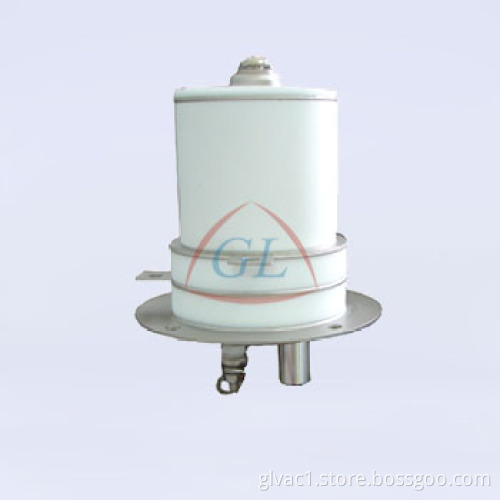

Hydrogen Thyratron (GL109)

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu
Payment Type:	T/T

Product Description

GLVAC manufactures complete types of thyrathons, includes GL series thyrathons, which are widely used in scientific research, military, medical treatment and industry such fields, which include laser instruments, radar, pulse modulator, medical linear accelerator, tommy bar protection and other electric instruments and equipments.

GLVAC is a global leading manufacturer of vacuum products, with more than 40 years experience in vacuum and electric components. GLVAC gets GJB9001B-2009, ISO9001: 2008, TS16949, and UL certification.

GLVAC also manufactures Ceramic Vacuum capacitors, Ceramic HV Vacuum Relays, Ceramic Vacuum Interrupters, DC Contactors, Pulse Magnetrons and other vacuum electrical apparatuses. You are welcome to visit GLVAC website and will get high quality with competitive price.

Anode Parameter
Peak forward anode voltage:	12kV
Peak anode current:	3000 A
Peak inverse anode current:	1500A
Average Anode Current:	100mA
Rate of rise of anode current:	50k A/μ s (see notes 1)
Anode Dissipation Factor:	2.5kA
Average Anode Current:	18×109VApps
Maximum pulse power:	18MW
Grid 2 drive
Unloaded grid 2 drive pulse voltage:	500V ~ 1500V
Grid 2 pulse duration:	1μs~2μs
Rate of rise of grid 2 pulse:	5kV/μs
Peak inverse grid 2 voltage:	200V max
Loaded grid 2 bias voltage:	0V~-150V
Forward impedance of grid 2 circuit:	50Ω~200Ω
Grid 2 pulse delay:	0.5μs~2μs
Grid 1 Pulse drive
Unload grid 1 drive pulse voltage:	500V ~ 1500V
Grid 1 pulse duration:	2μs(min)
Rate of rise of grid 1 pulse:	1kV/μs(min)
Peak inverse grid 1 voltage:	200V(max)
Drive current:	1.0A~3.0A
Grid 1 DC drive
DC grid 1 unloaded priming voltage :	75V~150 V
DC grid 1 priming current:	50mA ~ 150 mA
Heater
Cathode heater voltage:	6.3V±5%V ac
Cathode heater current:	5A~7A
Reservoir heater voltage:	6.3V±5%V ac
Reservoir heater current:	1.0A~1.5A
Minimum heater time:	5min
Mechanical Characteristics
Dimension and tube connections:	See dimensional date
Net weight:	500g approx
Mounting position:	Any[2]
Dimension:	See outline
Cooling way:	Forced-air and natural (see notes 3)
