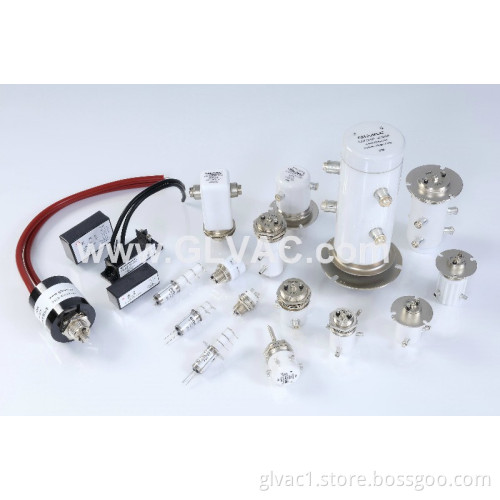

GLVAC manufactures complete types of High Voltage Relays, includes GL series HV Relays, GLH series HV Relays etc, which are notablely different from general relays by using particular impervious ceramic technology to keep relays' contacts in sealed container that is separate from air and obtain high withstand voltage. The high voltage relays can be filled by different medium for different application. Two kinds of medium, vacuum and high pressure gas, are normally used in GLVAC's relay.
GLVAC is a global leading manufacturer of vacuum products, with more than 40 years experience in vacuum and electric components. GLVAC gets GJB9001B-2009, ISO9001: 2008, TS16949, and UL certification.
GLVAC also manufactures Ceramic Vacuum capacitors, Ceramic Vacuum Interrupters, AC and DC contactors, Pulse Magnetrons, High Power Hydrogen Thyrathon and other vacuum electrical apparatuses. You are welcome to visit GLVAC website and will get high quality with competitive price.
GLVAC is a global leading manufacturer of vacuum products, with more than 40 years experience in vacuum and electric components. GLVAC gets GJB9001B-2009, ISO9001: 2008, TS16949, and UL certification.
GLVAC also manufactures Ceramic Vacuum capacitors, Ceramic Vacuum Interrupters, AC and DC contactors, Pulse Magnetrons, High Power Hydrogen Thyrathon and other vacuum electrical apparatuses. You are welcome to visit GLVAC website and will get high quality with competitive price.
| Part Number | Hot Switch | Rated Open Voltage(kV Peak) | Max CONT. Current (Amps) | CONTACT CONFIG | MAX CONTACT RESIST (0hms) | MAX OPEN TIME (ms) | MAX REL. TIME(ms) | MECH. LIFE (CYCLES) | ||
| DC or 60Hz | 32MHz | DC or 60Hz | 32MHz | |||||||
| GR3BJA335 | NO | 1.5 | 1.5 | 3 | 3 | SPST-NO | 0.05 | 0.8 | 0.5 | 100 million |
| GR6CBA335 | NO | 2 | 2 | 6 | 6 | SPST-NO | 0.025 | 2 | 0.5 | 100 million |
| GR2DNA | NO | 3 | 3 | 2 | 2 | SPST-NO | 0.1 | 1 | 1 | 100 million |
| GLH1 | NO | 3.5 | 1.5 | 25 | 7 | SPDT | 0.01 | 6 | 6 | 2 million |
| GLH3 | YES | 3.5 | - | 18 | - | SPDT | 0.02 | 6 | 6 | 2 million |
| GLH5 | Make Only | 3.5 | - | 8 | - | SPDT | 0.5 | 6 | 6 | 1 million |
| GL41A | YES | 5 | 2.8 | 30 | 12 | SPST-NO | 0.02 | 10 | 10 | 2 million |
| GL41B | YES | 5 | 2.8 | 30 | 12 | SPST-NC | 0.02 | 10 | 10 | 2 million |
| GL41C | YES | 5 | 2.8 | 30 | 12 | SPDT | 0.02 | 10 | 10 | 2 million |
| GL45C | YES | 5 | 2.8 | 20 | 8 | SPDT | 0.05 | 10 | 10 | 2 million |
| GR6FNA218 | NO | 5 | 5 | 8 | 6 | SPST-NO | 0.05 | 3 | 1 | 100 million |
| GR6HBA318 | NO | 7 | 7 | 10 | 6 | SPST-NO | 0.05 | 2 | 1 | 100 million |
| GL12 | YES | 8 | 2 | 10 | 2 | DPDT | 0.02 | 15 | 9 | 1 million |
| GL47A | YES | 8 | 5 | 12 | 3 | SPST-NO | 0.03 | 10 | 10 | 2 million |
| GL47B | YES | 8 | 5 | 12 | 3 | SPST-NC | 0.03 | 10 | 10 | 2 million |
| GLH2 | NO | 8 | - | 25 | - | SPDT | 0.01 | 6 | 6 | 2 million |
| GLH4 | YES | 8 | - | 15 | - | SPDT | 0.02 | 6 | 6 | 2 million |
| GLH6 | Make Only | 8 | - | 8 | - | SPDT | 0.5 | 6 | 6 | 1 million |
| GR6JNB218 | NO | 8 | 8 | 8 | 6 | SPST-NC | 0.05 | 3 | 2 | 100 million |
| GL43A | YES | 10 | 4 | 25 | 10 | SPST-NO | 0.02 | 10 | 10 | 2 million |
| GL43B | YES | 10 | 4 | 25 | 10 | SPST-NC | 0.02 | 10 | 10 | 2 million |
| GL43C | YES | 10 | 4 | 25 | 10 | SPDT | 0.02 | 10 | 10 | 2 million |
| GL81A | YES | 10 | - | 5,20 or 30 | - | SPST-NO | 0.03 | 10 | 10 | 2 million |
| GL81B | YES | 10 | - | 5,20 or 30 | - | SPDT-NC | 0.03 | 10 | 10 | 2 million |
| GL81C | YES | 10 | - | 5 or 30 | - | SPDT | 0.05 | 10 | 10 | 2 million |
| GR5LTA | YES | 10 | - | 5 | - | SPST-NO | 0.25 | 2 | 2 | 1000 million |
| GR5LTB | YES | 10 | - | 5 | - | SPST-NC | 0.25 | 2 | 2 | 1000 million |
| G13 | Make Only | 15 | - | 10 | - | DPDT | 1 | 15 | 9 | 1 million |
| G13L | Make Only | 15 | - | 10 | - | LATCHING DPDT | 1 | 15 | 9 | 1 million |
| G2L | NO | 15 | 7 | 50 | 10 | LATCHING SPDT | 0.012 | 15 | 9 | 1 million |
| G8L | YES | 15 | - | 30 | - | LATCHING SPDT | 0.025 | 15 | 9 | 1 million |
| GL15 | Make Only | 15 | - | 12 | - | SPDT | 1 | 15 | 9 | 1 million |
| GL15L | Make Only | 15 | - | 12 | - | LATCHING SPDT | 1 | 15 | 9 | 1 million |
| GL2 | NO | 15 | 7 | 50 | 10 | SPDT | 0.012 | 15 | 9 | 1 million |
| GL23 | NO | 15 | - | 75 | - | DPDT | 0.01 | 30 | 10 | 1 million |
| GL8 | YES | 15 | - | 30 | - | SPDT | 0.025 | 15 | 9 | 1 million |
| GL9 | NO | 15 | - | 75 | - | SPDT | 0.01 | 30 | 8 | 1 million |
| GR5MTA | YES | 15 | - | 5 | - | SPST-NO | 0.25 | 3 | 2 | 100 million |
| GL10 | YES | 20 | - | 45 | - | SPDT | 0.02 | 30 | 8 | 1 million |
| G62L | YES | 25 | - | 18 | LATCHING SPST,SPDT | 0.5 | 15 | 15 | 1 million | |
| GL22 | YES | 25 | - | 65 | - | SPST-NO | 0.005 | 18 | 10 | 2 million |
| GL50 | YES | 25 | - | 110 | - | SPDT | 0.005 | 100 | 15 | 1 million |
| GL52 | YES | 25 | 7 | 150 | 30 | SPDT | 0.003 | 100 | 15 | 1 million |
| GL62 | YES | 25 | - | 18 | - | SPST-NOSPDT-NCSPDT | 0.5 | 15 | 15 | 1 million |
| GL20 | NO | 28 | 10 | 110 | 30 | SPST-NO | 0.005 | 18 | 10 | 2 million |
| G60C | Make Only | 35 | - | 12 | - | SPDT | 1 | 15 | 15 | 1 million |
| G60L | Make Only | 35 | - | 12 | - | LATCHING SPDT | 1 | 15 | 15 | 1 million |
| G61 | Make Only | 35 | - | 10 | - | SPST-N,SPDT-N,SPDT | 1 | 15 | 15 | 1 million |
| G61L | Make Only | 35 | - | 10 | - | LATCHING SPST,SPDT | 1 | 15 | 15 | 1 million |
| G64 | Make Only | 50 | - | 10 | - | SPDT | 1 | 15 | 15 | 1 million |
| G64L | Make Only | 50 | - | 10 | - | LATCHING SPDT | 1 | 15 | 15 | 1 million |
| G71 | Make Only | 70 | - | 10 | - | SPST-NOSPDT-NCSPDT | 2 | 20 | 15 | 0.5 million |
| G71L | Make Only | 70 | - | 10 | - | LATCHING SPST,SPDT | 2 | 20 | 15 | 0.5 million |
