Alminum Honeycomb Composite Panel

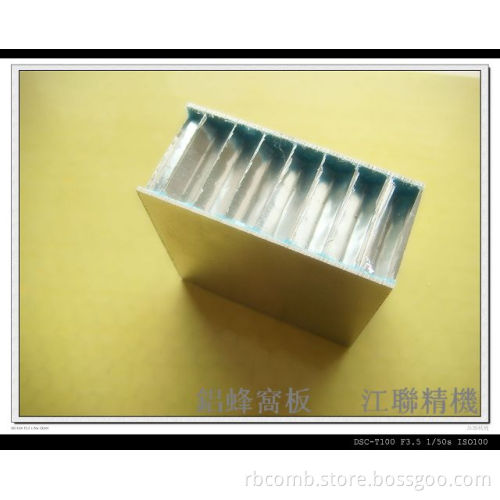

Aluminum honeycomb panels: Technology for civil aviation, travel decoration. Aviation, aerospace materials in civil fields. Aluminum honeycomb panels: Aviation, aerospace materials in civil construction, vehicles, ships and other areas of decorative applications. The panel's main selection of high quality alloy sheet material is 3003H24 or 5052H24, the top sheet thickness of 0.8 --- 1.5mm The board select PVDF with paint roller or resistance to high temperature paint, bottom sheet thickness of 0.6 --- 1.0mm Poly Ester roller board, the core material with hexagonal 3003H18 aluminum honeycomb core, aluminum foil thickness 0.04 --- 0.08mm, cell side 4 --- 8mm, the total thickness of 10 --- 25mm. Per square meter is about 3 to 7 kg, is the area with the thickness of the wood with the weight of 1 / 5, the glass 1 / 6, aluminum, 1 / 7, plate 1 / 10, greatly reduce the load and cost of construction, due to Interlayer with a lot of air, can sound (airborne sound insulation of up to 30dB), insulation (thermal resistance of up to 0.02 (m2 K / W)), non-combustible material, fire rating to Class 2006-A2, waterproof, moisture, No harmful gases released per unit mass than strength, than the stiffness (rigidity 1.7 times the rib), not easily deformed.
