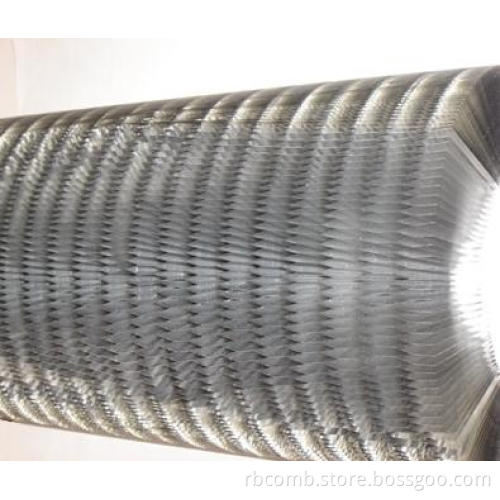

Aluminum Honeycomb Core

Product Range
Name Dimension: Cell size Characteristics
Cell size(D)
Inch 1" | 3/4 "|  1/2 " | 3/8 " |1/4 "|3/16 "
Mm 25 |21 | 17 | 15 | 13 | 10 | 8.5 | 6.5 | 5
Cell side(a)
Mm 15 | 12 | 10 | 8 | 7.5 | 6 | 5 | 4 | 3
Foil Thickness(Mm): 0.04~0.08
Density(Kg/m3): 16.7~83.47
Press breaking force(Mpa): 0.37~5.47
Material  : 3003H18 Alloy
According to the HB5443-90 standard
Annual efficiency amounts to 300T about 300, 000 square meters.
