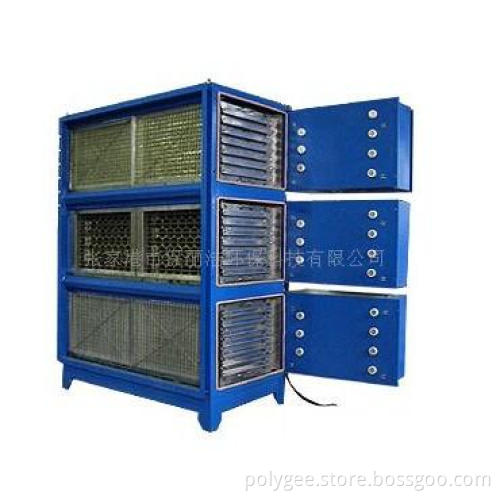

Air Purifier (EP Series)

Electrostatic Air purifier
Contaminated air is drawn by the motor/blower through a washable metal mesh pre-filter, which traps large dust particles. The remaining particles, some as small as 0.01 microns, pass into a strong electrical field (12.5kv-13kv) (ionizing section) where the particulate receives an electrical charge. The charged particles then pass into a collector plate section made up of a series of equally spaced parallel plates. Each alternate plate is charged with the same polarity (6kv-7kv) (collecting section) as the particles, which repel, while the interleaving plates are grounded, which attract and collect the contaminants. The contaminants are held in these plates until they are washed away.

Technical Features:
1. Hi-efficiency: Collecting all sizes of oil mist high efficiently.
2. Flexible: Modularized purification units can fixed optionally, the quantity of the units can be adjusted according to the workload and purifying levels.
3. Convenient: Drawer-Style Modularized purification units are easy to be fixed, maintained and cleaned.
4. Advanced: Static power supply control system can automatically adjust electric field intensity, which keeps the long-term and durable hi-effciency.
5. Safe: With carefully designed safety system, the high tension supply switches off automatically.

Input voltage: 220V
High Voltage: 12.5kv-13kv
Low Voltage: 6kv-7kv
Wind vane: Right into the wind
Material structure: Four supporting plates are stainless and other plates are aluminium
Filtration mesh is stainless and outside cabinet is steel with painting
