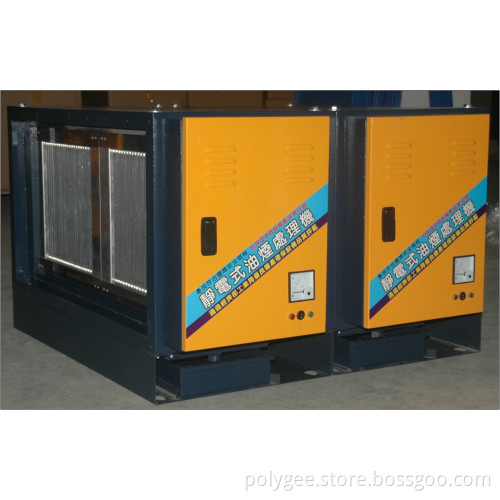

Electrostatic Air Cleaner (EP-40 Horizontal Combination)

Applications:
Hotel, Restaurant, Kitchen, Food-Processing Pant

How it works:
Contaminated air is drawn by the motor/blower through a
Washable metal mesh pre-filter, which traps large dust
Particles. The remaining particles, some as small as 0.01
Microns, pass into a strong electrical field (12.5kv-13kv)
(ionizing section) where the particulate receives an
Electrical charge. The charged particles then pass into a
Collector plate section made up of a series of equally
Spaced parallel plates. Each alternate plate is charged with
The same polarity (6kv-7kv) (collecting section) as the
Particles, which repel, while the interleaving plates are
Grounded, which attract and collect the contaminants. The
Contaminants are held in these plates until they are
Washed away.

Features:
Efficient: LK purifier collects the particles as micro as 0.01 microns at a rate of 99%
Flexible: Modularized parts are easy to assemble as per different air-flow and requirements
Convenient: Drawer-style modularized parts are easy to fix and maintain
Advanced: Electrostatic power control system adjusts the electric field intensity automatically,
Safe: Safety system automatically protects all units by the flashing tracking
Stable: Overload protection in the power system ensures the stable running.
Economic: Long term service, lower power consumption, less space occupation.
