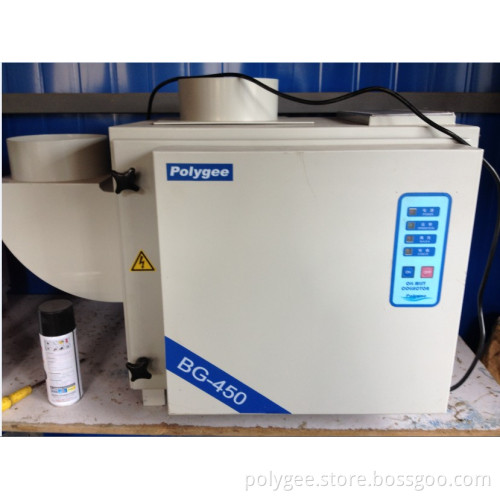

Electrostatic Air Purifier for Oil Mist (BG-450)

Operating Principle

The dual-part style BG-450CNC lathe fume & oil mist purifier includes ionizing part and collecting part. A Series of tungsten filament and opposite earthing plates

Constitute the ionizing part. The dirt motes are charged P/N by the ionizer. A Seriesof parallel plates constitute the collecting part. The plates are charged by hi-tension DC form the electric field. Charged corpuscles are attracted by earthing plates, simultaneously repelled by charged plates. Thus, the dirt motes are easily removed

Features
Solid state power supply
Electrical component box mounted out of air stream
Motor HP options for added static pressure
Teflon insulators — Out of air stream for increased reliability
Spiked ionizer — No ionizing wires to replace, reducing maintenance and replacement cost
High efficiency — Up to 95% on single pass and 99% on double pass option
Permanent ionizer/collector elements — No filter replacement cost; Just wash, dry and reinstall
Low pressure drop — Lower energy cost to operate compared to media and cartridge units
Hinged access — No tools required for quick and easy service
