CNC Lathe Air Cleaner (BG-550)
- Payment Type:
- L/C, T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | China |
---|---|
Payment Type: | L/C, T/T |
Product Description
Product Description
Product Description
Air Purifier

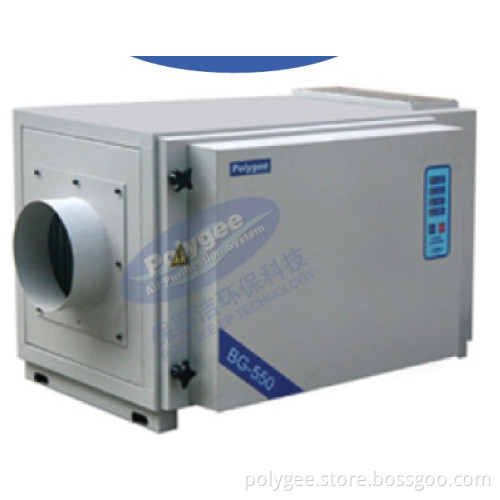

Polygee's BG-550 Air Purifier is a professionally designed and well produced filtration and purification unit, which requires "no filtration media replacement". The purifier features tri-step filtration and purification: First a metal mesh pre-filtrating the big size contamination; Second: A master purification unit ionizing and collecting micro-particles with minimum size 0.01μ M and the efficiency up to 99.9%; Third: An active carbon filtration as the odor-eliminator. Air flow are sucked by the single-Phase turbo fan that is rationally built-in. Casings are constructed of high-quality mild steel and powder-coated (custom colors available).
The BG-550 also includes all Hi-Voltage power supplier, circuit-breaker, motor cut-out, electric parts and 2m long cable with plug. BG550 is perfect for extracting fumes, oil-mist, gases, and light, dry dusts. Application includes metal-processing lathe (common and CNC), soldering and other contaminating area. The BG 550 air purifier is easy to install and fix on the machine, custom designs according to different working situations and applications are available.
Polygee's BG-550 Air Purifier is a professionally designed and well produced filtration and purification unit, which requires "no filtration media replacement". The purifier features tri-step filtration and purification: First a metal mesh pre-filtrating the big size contamination; Second: A master purification unit ionizing and collecting micro-particles with minimum size 0.01μ M and the efficiency up to 99.9%; Third: An active carbon filtration as the odor-eliminator. Air flow are sucked by the single-Phase turbo fan that is rationally built-in. Casings are constructed of high-quality mild steel and powder-coated (custom colors available).
The BG-550 also includes all Hi-Voltage power supplier, circuit-breaker, motor cut-out, electric parts and 2m long cable with plug. BG550 is perfect for extracting fumes, oil-mist, gases, and light, dry dusts. Application includes metal-processing lathe (common and CNC), soldering and other contaminating area. The BG 550 air purifier is easy to install and fix on the machine, custom designs according to different working situations and applications are available.
ITEMS | BG 550 |
Airflow Rating (M 3 /H) | 550CMH |
Power Consumption | 300 W |
Electrical Supply | 220 V |
Dimension: | 900*560*550 MM |
Flange Diameter: | 100 MM |
Weight: | 72 KG |
Noise: | 70dp |
Capacity: | Min particle 0.01μ M |
Efficiency | Up to 99.9% |
Cabinet: |
1.1 mm thickness welded stainless steel sheet |
Finish: | High Bake Epoxy Powder |
Airflow: | Horizontal. Right/Left or Left/Right |
Installation: |
Free standing, wall or frame mounted |
Electrical Connection: | Direct to junction box on unit |
Pre-/after-filter: | Washable aluminium mesh |
Controls: | On/Off Switch with operating light |
Electric Field | Spiked design; aluminium / stainless steel blades |
Insulators: | Teflon |
Voltage: | Ionizer - 12 KV / Collector- 6 KV |
Power Supply: | 220V/AC 50~60Hz |
