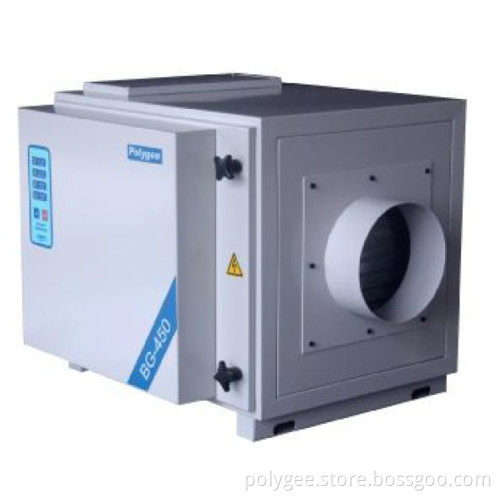

Flexible Smoke Extractors with Electrostatic Air Filter (BG-450)
- Payment Type:
- L/C, T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | China |
---|---|
Payment Type: | L/C, T/T |
Product Description
Product Description
Product Description
Air Purifier
Polygee's BG-300/450 Air Purifier is a professionally designed and well produced filtration and purification unit, which requires "no filtration media replacement". The purifier features tri-step filtration and purification: First a metal mesh pre-filtrating the big size contamination; Second: A master purification unit ionizing and collecting micro-particles with minimum size 0.01μ M and the efficiency up to 99.9%; Third: An active carbon filtration as the odor-eliminator. Air flow are sucked by the single-Phase turbo fan that is rationally built-in. Casings are constructed of high-quality mild steel and powder-coated (custom colors available).
The BG-300/450 also includes all Hi-Voltage power supplier, circuit-breaker, motor cut-out, electric parts and 2m long cable with plug. BG300/450 is perfect for extracting fumes, oil-mist, gases, and light, dry dusts. Application includes metal-processing lathe (common and CNC), soldering and other contaminating area. The BG 300/450 air purifier is easy to install and fix on the machine, custom designs according to different working situations and applications are available.
Polygee's BG-300/450 Air Purifier is a professionally designed and well produced filtration and purification unit, which requires "no filtration media replacement". The purifier features tri-step filtration and purification: First a metal mesh pre-filtrating the big size contamination; Second: A master purification unit ionizing and collecting micro-particles with minimum size 0.01μ M and the efficiency up to 99.9%; Third: An active carbon filtration as the odor-eliminator. Air flow are sucked by the single-Phase turbo fan that is rationally built-in. Casings are constructed of high-quality mild steel and powder-coated (custom colors available).
The BG-300/450 also includes all Hi-Voltage power supplier, circuit-breaker, motor cut-out, electric parts and 2m long cable with plug. BG300/450 is perfect for extracting fumes, oil-mist, gases, and light, dry dusts. Application includes metal-processing lathe (common and CNC), soldering and other contaminating area. The BG 300/450 air purifier is easy to install and fix on the machine, custom designs according to different working situations and applications are available.
ITEMS | BG 300 | BG 450 |
Airflow Rating (M 3 /H) | 300CMH | 450CMH |
Power Consumption | 180 W | 300 W |
Electrical Supply | 220 V or 110V | 220 V |
Dimension: | 550 * 415 * 400 MM | 690 *560* 430 MM |
Flange Diameter: | 100 MM | 200 MM |
Weight: | 30 KGS | 45 KGS |
Noise: | 68db | 70db |
Capacity: | Min particle 0.01μ M | Min particle 0.01μ M |
Efficiency | Up to 99.2% | Up to 99.2% |
Cabinet: |
1.0 mm thickness welded stainless steel sheet |
|
Finish: | High Bake Epoxy Powder | |
Airflow: | Horizontal. Right/Left or Left/Right | |
Installation: |
Free standing, wall or frame mounted |
|
Electrical Connection: | Direct to junction box on unit | |
Pre-/after-filter: | Washable aluminium mesh | |
Controls: | On/Off Switch with operating light | |
Electric Field | Spiked design; aluminium / stainless steel blades | |
Insulators: | Teflon | |
Voltage: | Ionizer - 13 KV / Collector- 6.5 KV | |
Power Supply: | Solid state |
