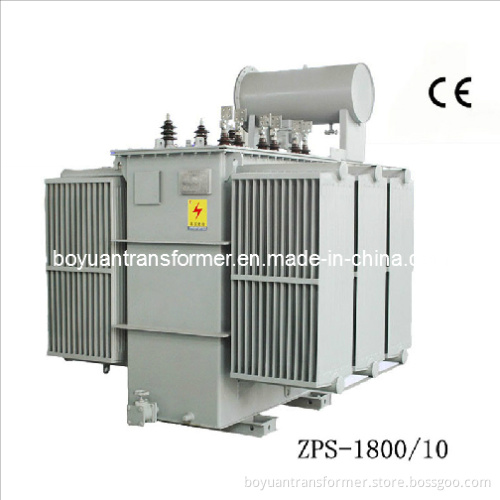

Medium Frequency Power Supply Using Rectifier Transformer (ZPS-1800/10)
- Payment Type:
- L/C, T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Zhangjiagang, Jiangsu |
|---|---|
| Payment Type: | L/C, T/T |
Product Description
Product Description
Rectifier transformer is the most widely used power supply equipment. It is mainly used in electrochemistry, metallurgical electrolysis, DC drive, medium-frequency power supply and electric heating crystallization of silicon carbide and other occasions.
Technical parameters
Rated capacity: Se=1800kVA
Primary voltage: U1=10KV± 5 percent 3 phase 50Hz
Primary current: I1=104A
Secondary voltage: U2=660V*2
Secondary current: I2=787.3A*2
Voltage regulation mode: 3files without magnetism by manual pressure regulator
Coupling group: D, d0 y11
Impedance voltage: UK =6 percent
Cooling mode: ONAN(oil-immersed self-cooled)
Working way: Continuous system and matching operation with the rectifier mode of Twelve pulse wave three-phase bridge
Type of equipment: Outdoor
Special instructions: Ensure that transformer can have a long-term stable operation when the intermediate frequency equipment outputs 1550 kw active power and long time to use
Technical parameters
Rated capacity: Se=1800kVA
Primary voltage: U1=10KV± 5 percent 3 phase 50Hz
Primary current: I1=104A
Secondary voltage: U2=660V*2
Secondary current: I2=787.3A*2
Voltage regulation mode: 3files without magnetism by manual pressure regulator
Coupling group: D, d0 y11
Impedance voltage: UK =6 percent
Cooling mode: ONAN(oil-immersed self-cooled)
Working way: Continuous system and matching operation with the rectifier mode of Twelve pulse wave three-phase bridge
Type of equipment: Outdoor
Special instructions: Ensure that transformer can have a long-term stable operation when the intermediate frequency equipment outputs 1550 kw active power and long time to use
