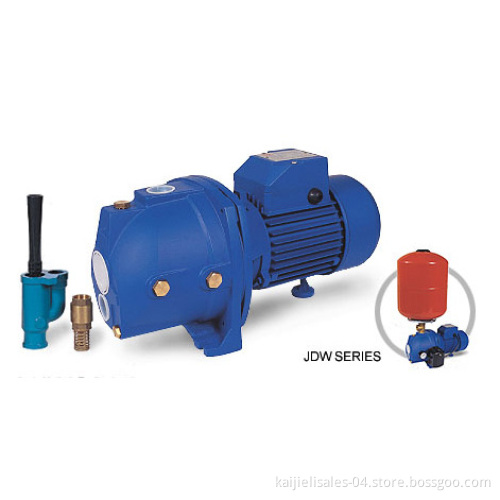

Deep Well Jet Pump (JDW Series)

Pump Body: Cast Iron
Impeller: Brass/ABS/Noryl
Diffuser: Noryl/PPO/ABS/Cast Iron
Motor Housing: Cast Iron
Front Cover: Aluminum/Cast Iron
Mechanical Seal: Stainless Steel(graphite to ceramic)
Shaft: 45#Steel or Stainless Iron
Bearing: SKF/NTN/NSK/China
Insulation: B or F
Protection Class: IP44 or IP55
Fluid temperature up to +50º C
Max. Ambient temperature up to +40º C
This sereis of automatic deep well jet pumps are particulary suitable for pumping water from deep wells. They have capability of lifting water to a maximum 45 meters. The pump is located on the surface with the ejector immersed into the well.
