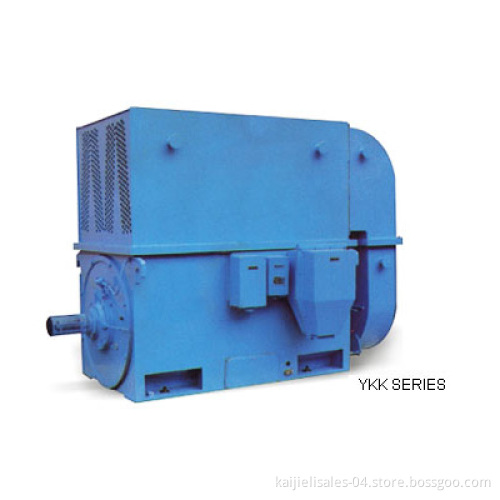

6kv/10kv Medium-Sized High-Voltage Theree-Phase Asynchronous Motors (YKK Series)

YKK series medium-sized motors (H355-630) are our new products, its outp range, dimension of installation, and electric performance are in conformity with correlative national standard GB755-2000 and relative IEC standard. The motor adopts compacted box structure, wielding-jointed steel plate for its frame, light weight, rigid in construction, there is closed air to air coolers on top of the stator frame convenient for installation and maintenance.
The stator is so constructed as the stator core is stacked and assembled with coils to form an insividual assembly which is then put into the stator housing, rigidly supported and braced at the end portion. During processing, the coils undergo several turn and turn pulse voltage tests and voltage endurance test to ground and vacuum pressure impregnated with solventfree varnish, pass several impulse voltage test among the wind and endure voltage test, treated with advanced, squirrel rotor is made of pure alumium under adopting advanced casting technique, squirrel rotor is made of pure aluminum under adopting advanced casting technique.
Depending on the output and speed of the motor rolling bearing or sleeve beating is used. Other voltage voltage/frequency and protection class motor can also provided upon orde request YKK series motors have good features: High efficient, low noise, slight vibration, reliable operating. Convenient installation and maintenance.
Ykk Series 10KV motors are applicable for driving various types of universal machines, such as compressor, pump, crusher, cutting machine tools, transportation equipment and other mechanical equipment, and act as prime mover at mine, mechanical industry, petroleum and chemical industry, power plant and other industrial purpose. Ig they are to be used to drive fan, coal-grind machine, rolling mill, windlass, relevant techinical information shoud be provided when placing an order based on which special consideration will be given to the motors so as to ensure motor reliable operation.
