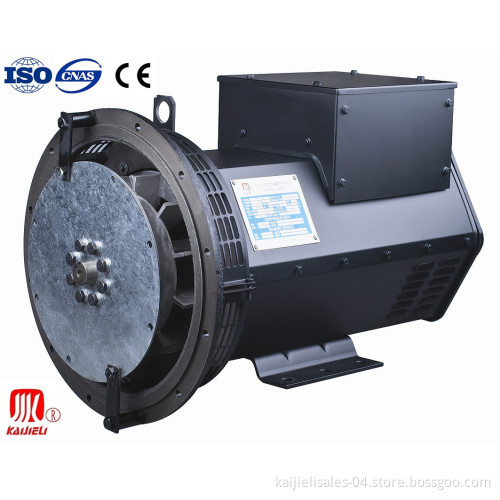

Twg Series Marine Brushless AC Synchronous Generator, Alternator

TWGII Series 3-phase brushless synchronous Generator
Brushless, Standford Type, Standard IEC34-1, Pole Type Whole Salient, Excitation System Self-Exciting, Leads 12, Bearing Single/Double, Duty S1, Ambient Temp: -15~+40° C, Winding Pitch 2/3, PF=0.8, Stable AVR+/-1%, Instant AVR, 15%~+20%, THD≤ 3%, THF≤ 2%, TIF≤ 50, 150% Overspeed (2250rpm) lasting 2min, Voltage 110~660V, 50 or 60Hz, 3-Phase, 4-Pole(1500rpm or 1800rpm), w/AVR Control.

FEATURES:
1. Reliable AVR exciting system and optional permanent magnectic system always provide invariable excitation on all occasions.
2. Easy to be connected with power network or parallel other generators.
3. Balanced rotor, sealed single and souble ball bearings.
4. Convenient installation ans easy meaintenance, wasy maintenance, easy access to terminal. Rotating rectifier and coupling bolts.
5. Wide range of flange adapter and coupling disc for singel bearing.
6. In conformity with all main land standard.
