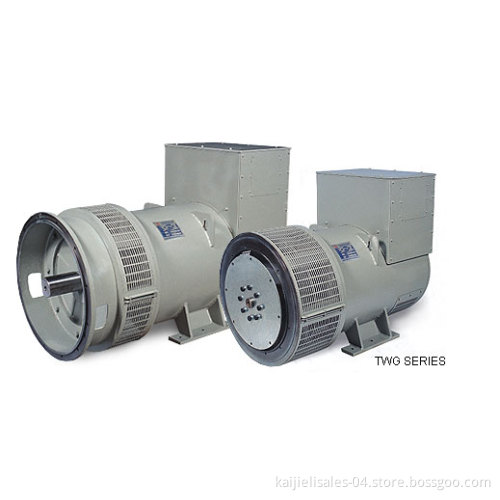

Brushless Alternator Leroysomer Type (TWG SERIES)

AC Synchronous generator brushless type.
Standard IEC34-1, pole type, whole salient, excitation system self-exciting, leads 12, bearing single/double, duty s1, ambient temp.
-15~+40° C, winding pitch 2/3, pf=0.8, stable AVR+/-1%, instant AVR -15%~+20%, thd≤ 3%, thf≤ 2%, TIF≤ 50, 150% overspeed (2250rpm) lasting 2min, voltage 110~660V, 50 or 60Hz, 3-phase, 4-pole(1500rpm or 1800rpm), insulation class h, protection class IP21/IP23, bearing SKF, w/AVR control, power range from 50kw to 900kw.
