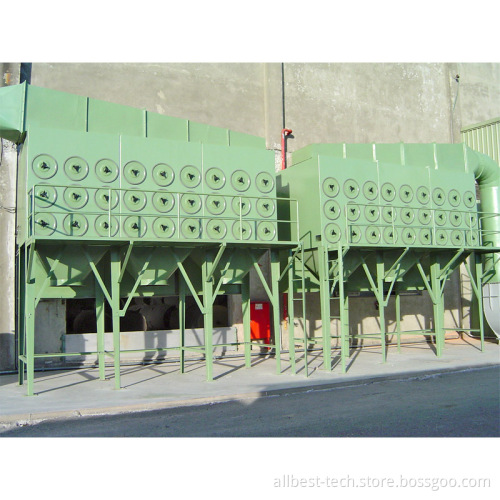

Dust Collector DSC00203

FILTRATION OPERATIONAL THEORYStep 1: Dust laden air enters through the inlet of collector heavy particles fall immediately into the hopper bottom.Step 2: As the air is drawn in through the filter cartridges, dust is deposited on the surface of the filtering media.Step 3: Clean air flows out of the collector from the out let.Step 4: The filter cartridges are cleaned automatically.Step 5: The system remains on line continuously for full-time pollution control, better product quality, and longer machine life.Step 6: A solid state timer controls cycle time.Step 7: Solenoid valves introduce high pressure air into each filter cartridge in turn, through the venturi opening above it.Step 8: Reverse airflow cleans the cartridges. Collected dust falls to the bottom of the collector.
