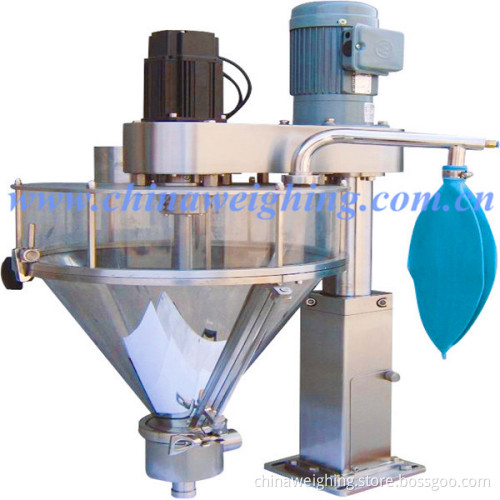

Vertical Filler (AF)

Our Vertical Fillers dose most powders volumetrically with scale feedback for precision weighing.

How Vertical Filler Works?

1, Vertical auger looks like a corkscrew, it's long Stainless Steel spiral blade wrapped around a central shaft, it's driven by an electric motor at top of the auger.

2, The auger rotates in the hopper filled with lose powder. As it turns it drives the powder through the bottom of the hopper into a narrow tube, where the powder is drawn down the tube by the turning screw. The auger runs through the narrow tube, creating a tight fit, so as the screw turns it pulls the prescribed amount of powder down the tube filling the container.

3, The Agitator keeps the feed to the centre of auger.

4, As the vertical auger sends measured doses into packaging container, the closed hopper is topped up with powder to maintain the levels, so there' no interruption in production and maintaining a constant head pressure.

5, The PLC sends a signal to the auger drive system, which turns the auger a pre-set number of revolutions delivering a measured dose of product. You can control the amount of powder delivered by setting the number of revolution the auger turns. This can be measured and calibrated to deliver a precise amount of powder.

Partners


Our Factory and Team

Our Services: Overseas Service Center Available

1, 12 months parts and labor is warranted on all equipment supplied by C. W. E.

2, A. W. E Group recognises that providing great service, with great people on time.
3, Our company is committed to providing quality, reliable products, customer service and support.

Contact Person: Journey


If you want to have more information about our Vertical Filler, please contact me.

Technical Specifications of Vertical Filler
