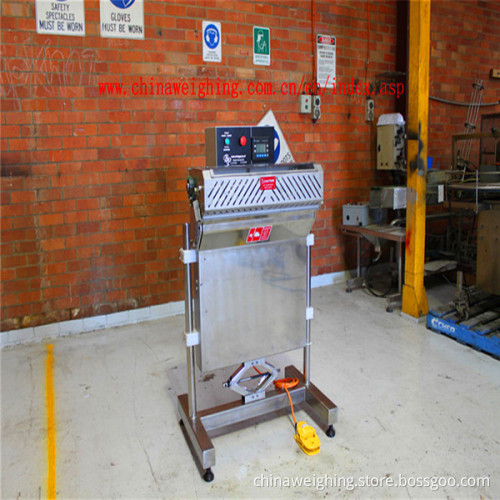

High Speed Plastic Bag Pinch Bag Closer

The High Speed Plastic Bag Pinch Bag Closer is capable of handling stepped end bags, which have a pre-applied, hot melt adhesive strip positioned along the top flap of the bag. How High Speed Plastic Bag Pinch Bag Closer works? 1, High Speed Step End Paper Bag Closer Machineuses HEAT and PRESSURE to seal and close your bags. The Pinch Bag Closer is designed to perform 3 primary functions: A, Seals the inner plastic liner within a multiwall bag. B, Fold the top flap to Improve the sealing properties. C, Glue the top flap to Improve the sealing properties. The heat, pressure and time are electronically controlled from the HMI Screen. 2, Once the foot switch or push button is engaged the PBC controls take over, the bag faces are flattened together and heat from the seal bar is applied to the bag. Cooling occurs and a hermetic seal is formed on the inner liner. 3, Once the top edge of the bag hits the bag stop plate, a fold line is formed. The folding plate rotates to 80° Folding the top 40-50mm of the bag with a parallel fold. 4, Finally the folding plate retracts and the sealing jaws apply heat and pressure to the folded bag section. The hot melt adhesive bonds to the paper to produce a high-integrity seal, eliminating the need for costly over-wraps. Services1, 12 months parts and labor is warranted on all equipment supplied by C. W. E. 2, A. W. E Group recognises that providing great service, with great people on time. 3, Our company is committed to providing quality, reliable products, customer service and support. Technical Specifications of High Speed Plastic Bag Pinch Bag Closer
