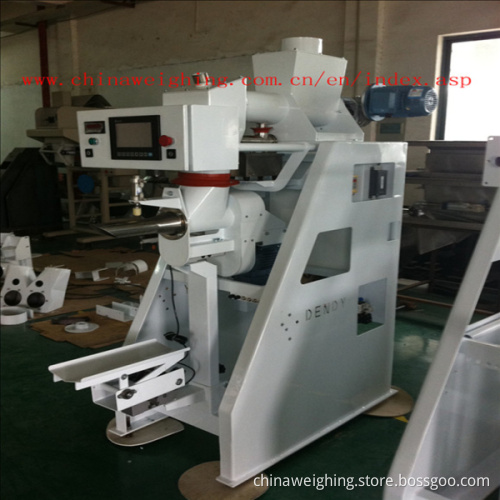

50 Kg Electric Driven Type Cement Automatic Bagging Machine

Product Description


50 Kg Electric Driven Type Cement Automatic Bagging Machine is a single or twin-spout auger valve bag filling and weighing equipment.


 Electric Driven Type Cement Automatic Bagging Machine is designed to bag free flowing, non clumping powders and granules into valve bags.

Packing Material

Notes: Not Limited(Suitable for powders and granulates within 5mm)

Detailed Images

Partner

FAQ

Why don't you answer the fololwing questions for us to help you find what you want ?

1, the material you want to pack and its size(μm, mm), bulk density(kg/m3)

2, packing weight (kg/bag), capacity (t/day)

3, detailed description of production line

How  Electric Driven Type Cement Automatic Bagging Machine Works?

1, The bagger is fed from an overhead hopper,silo or mixer containing the product to be bagged.

2, The packing cycle begins by managing a charge of material from the overhead vessel into  holding chamber of Hot Sale Automatic Screw Auger Dry Mortar Packing Machine .

3, The filling cycle begins with the placement of bags onto the nozzle. A depression of foot switch or start button on the controls starts the filling cycle. Main feed auger, vibratory feeder, and valve auger feeder all come on together and run for flood fill of system.

4, Once flood fill setpoint has been achieved then slow speed filling kicks in. Main feed auger slows down after receiving signal from v.f.d, fills to pre-determined weight e.g 98% then main feed auger shuts off.

5, Vibratory feeder and valve auger continue to run together until final setpoint is achieved.Fast, accuracy filling is achieved.

6, Filling cycle is complete. In the case of Single Auger Filler replace bag and the cycle continues.

 Technical Specifications of  Electric Driven Type Cement Automatic Bagging Machine
