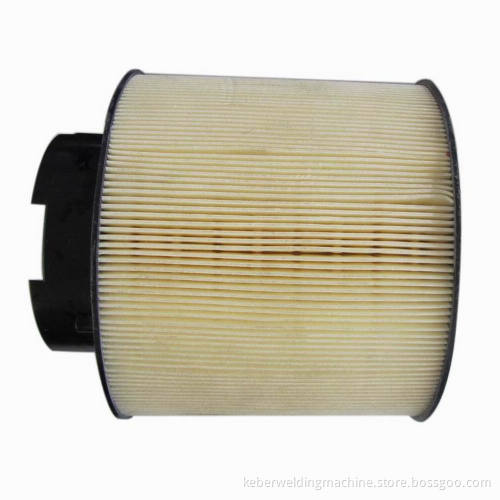

Filter Infrared Radiation Welding Machine

Welding process:Welding process: Turn on the power ____check the air____adjust the process of the machine___put in the products manual___start the botton___heat system up to the right place___the workpiece in the right place___back to the heat place___according to the adjust parameter heat the products___ finish heating ___cool___welding finish, and do like thisDrive system1. The up and down department drived by cylinder2. The front and back drived by servo motor and high precision cypress.3. The transportation for the welded products use motor strap drive manner.Hot radiation welding equipment1. Accoring to the welding area of the prodcuts, need different quatity infrared heat tubes, the size is 250mm lengthThe power of the heat tube is 500W, it's design by keber.2. We can control the rediation frequency of the heat tube.3. The equipment have alarm function and can protect by itself.Cntrol system1. Use PLC control system, use the screen to adjust the welding parameter2. Provide electrical\air control box, the electrical and the air are detach.3. The electrical system use MITSUBISHI brand devices.4. The pneumatic system use FESTO brand devices.PLC function and the screen1. Choose the welding time2. Manual/automatic change adjustManual-every drive departments and time adjust detachAutomatic-finish all the process automatic3. Can design different hold function for different model4. Set up password protect, only the right person can operate the machine.
