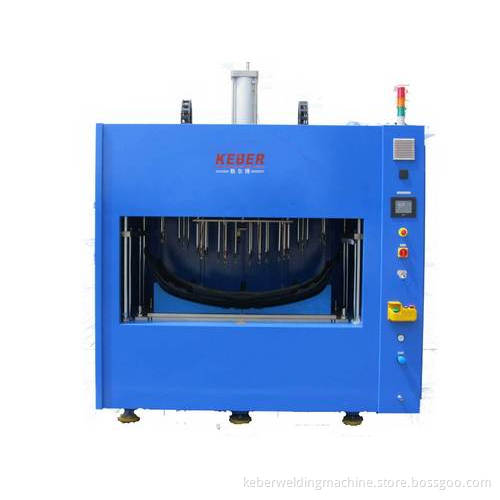

Auto Bumper Heat Staking Welding Machine

Auto Trim Heat Staking Welding Machines:Hot riveting machine technical Specifications:Voltage: 380V or 416V +/-10% 50Hz 3phaseHeating power: 150W per heat staking headWelding temperature 150 to 180 degree centigradePull resistance >150N per single point.Weight: About 2.8T per set.Design conception:1, Use special designed machine to weld the plastic parts.2, All the electrical connection by Heavy duty fast connectors3, The pneumatic system connected by pneumatic fast connector.4, There are air cool blower at every welding position.5, The equipment driven by pneumatic.6, The heating mould has two locks after moving back to the original position.7, The fixture mould is made by Aluminum alloy or Nylon.8, There is workpiece test sensor on the mould, if not worpiece on the machine, the welding cycle can't start.9, Equipment has optical grating to protect the operator, and any door open, the machine will stop working.10, Equipment adopt the PLC control system, man-machine interface text is English.Advantages:Equipment manufacture cost lower than the ultrasonic welding machine.The entire welding time is fast than the ultrasonic welding machine, About 30~50seconds per piece by one cycle, the ultrasonic should weld The entire parts by several hits separately.Easy to adjust, once the parameter OK, the machine will stable working.Easy to maintenance.Low power consumption.Easy to update.The welded spot is beautiful than the ultrasonic welder.
