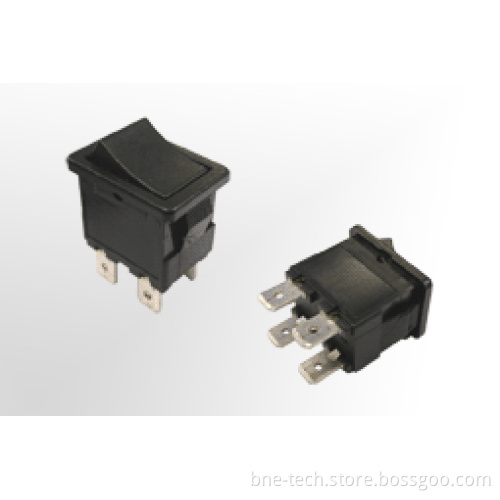

Rocker Switch

Get Latest Price

Payment Type:: T/T, D/P, Western Union, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, D/P, Western Union, Paypal

Product Description

20A 125VAC, 12A 250VAC ( UL, CUL ) 12A 125VAC, 10A 250VAC ( UL, CUL ) 10A 125VAC (UL, CSA NRTL/C) 6A 250VAC (UL, CSA NRTL/C) 6A 125VAC, 3A 250VAC(UL, CSA NRTL/C) 10(4)A 250VAC~ T125 (VDE, SEMKO, DEMKO, NEMKO, FIMKO, SEV) 10(4)A 250V~T125 (CQC) TV-6 (CUL) 10A 12/14/18/24 VDC ( UL, CUL) 16(8)A 250V T85 1E4 (VDE) Initial contact resistance: 20m ohm (max. ) Insulation resistance: 100M ohm (min, ) at 500VDC Dielectric strength: 1, 000VAC for 1 minute Electrical life: 10, 000 cycles Temperature range: -20 to +125 degrees in Celsius Switch for Class II appliances Base: Nylon 66, UL rated 94V-2 min Actuator: PBT / Nylon 66, UL rated 94V-2 min Spring: Piano wire Contact: Silver alloy Terminals: Silver plated Copper, soldering, quick connecting and PCB terminals offered
