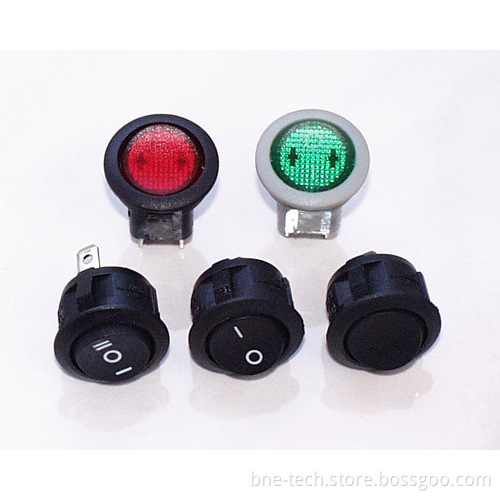

Round Rocker Switch (MR-210)

Get Latest Price

Payment Type:: T/T, D/P

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, D/P

Product Description

Product Specifications /Features: 1. 12A 125VAC, 10A 250VAC 1/4HP (CSA)10A 125VAC, 8A 250VAC 1/4HP (UL)10 (4)A 250V ~ T125/55(VDE, SEMKO, DEMKO, NEMKO, FIMKO, SEV)2. Initial Contact Resistance: 20m ohm max. 3. Insulation Resistance: 100M ohm min. At 500VDC4. Dielectric Strength: 1, 000VAC for 1 minute5. Electrical Life: 10, 000 cycles6. Temperature Range: -20 Centigrade degrees to 85 Centigrade degrees7. Switch for class II appliances8. Base: Nylon 66, UL rated: 94V-2 minutes9. Actuator: Nylon 66/PC, UL rated 94V-2 minutes10. Movable Contact Arm: Phosphorus bronze11. Movable Contacts: Silver-cadmium alloy12. Stationary Contact: Silver-cadmium alloy13. Terminals: Silver plated copper14. Lamp: Neon for AC, Tungsten bulb for DC
