Second Hand PE/PP/PS Pelletizing Line

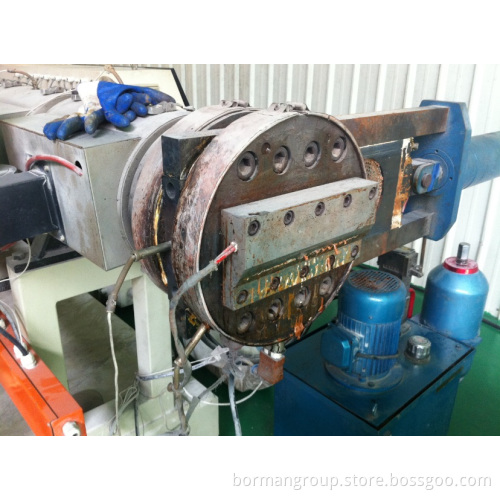

Second hand PE/PP/PS pelletizing lineFor more information, please contact by e-mail, you will see more photos! 1. Power standard: 380V 50Hz, 3Phase2. Recycling material: PS, PE, PP rigid waste3. Capacity: 300kg/hMachine parameter: 1. SJ120 single screw extruder1) Screw diameter: 120mm2) L/D: 30: 13) Driven motor power: 110Kw(DC)4) Screw and barrel material: 38CrMoAlA, nitriding depth: 0.3-0.6mm, nitriding strength ≥ 950HV5) Barrel heater: Ceramic heater, total 8 zones, total heating power: 64kw6) Barrel cooling: Force cooling by low noise blower, total powerL 2.96kw7) For hard surface reducer transmission, gear used in all hard surface carburizing gear grinding process, load torque, smooth transmission. Cabinet equipped with oil circulation cooling system. 2. Pelletizing mold1) Material: 40Cr alloy steel2) Heat treatent: Quenching and tempering treatment, hardness: HB250-280, mold head hardening treatment, hardness: HRC403. Cooling tank1) Tank material: Stainless steel, plate thickness: 2mm2) Tank length: 4m3) Inside the tank with 3 sets of supporting rollers4. Water remover1) Fan power: 3kw2) All the steel touch with the material adopt stainless steel5. LQ400 pelletizer1) Motor power: 5.5KW2) Speed control: Frequency converter control3) Pelletizing blade: Harden alloy steel4) Material traction: Tensile clamp, up roller is tensile roller, down roller is steel roller6. Material transmission and silo1) Blower power: 3KW2) Silo volume: 1CBM3) Silo and pipe material: Stainless steel7. Electric control parts1) 380V 50Hz, 3Phase2) Main driven motor on extruder: Eurotherm governor3) Temperature control: Omron4) Low voltage electric parts: Schneider5) With main driven motor overload protection system
