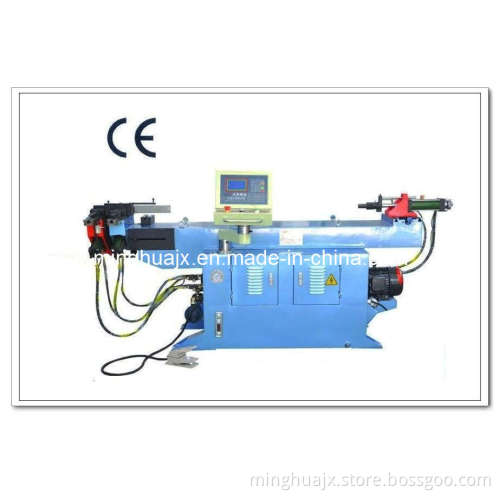

Single-Head Hydraulic Pipe Bending Machine (DW38NC)

1) Bending function is the same as DW38NC
2) NC Control Unit / Touch Screen
3) Direct Acting Hydraulic clamping
4) Easy Operator Interface and Easy Data Input
5) Large Program Storage Capacity
6) Automatically lock angle
7) Angle changing is controlled by coder
8) High Bending Accuracy
9) Self Diagnosis and Error Messages
10) Optional Boost Facility
11) Range of bending radius: 25 - 200mm
12) Max. Bending diameter of tube: 38mm
13) Max. Bending angle: 190 degrees
14) Max. Bending speed: 65 degrees/s
15) Steel, Stainless Steel, Aluminum, Copper
16) Weight: 750kg
17) Packing Dimensions: 2200 x 900 x 1200mm
18) All parts are tested and assembled with strict quality control to meet the specification of ISO9001.
