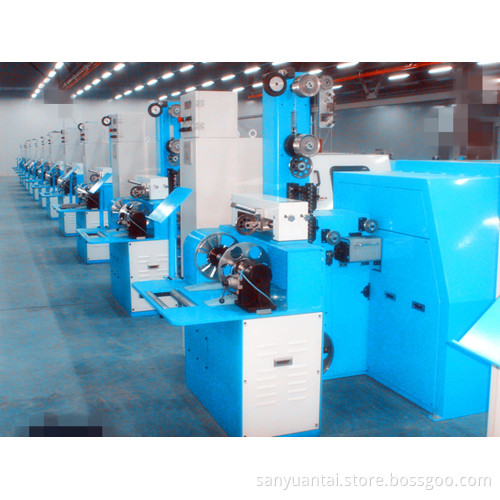

Buncher Double Twisting Machine Bunching Machine

SpecificationsMulti-brasswire intertwistOne main motor driving system for bow, capstan, spoolerPart one Features: One main motor driving system for bow, capstan, spoolerEquipped with noise absorb safety coverStrand pitch obtained by means of change gearsAll models can select accurate rolling tension to feedback to the control system. Part two Main technical data: Main usage: Multi-brasswire intertwistSurface of single brasswire(mm2 ): 0.05-2.5Diameter of single brasswire(mm): Φ 0.1-Φ 0.68Distance of interwiretwist: 5.6-57.99(Or as per customer's request) Electric dynamo: Three-phase 5kw frequence-envarying speed-controlThe fast convolution speed of main axis: 3000r/minWire-receiving stretch force structure: 256Magnetic clutch automatic adjustmentThe size of wire-receiving wheel: Φ 500mmThe largest capacity of brass-holing of wire-receving wheel main axis: 250kgThe up-and-down structure of wire-receving wheel: Up and down of spooler by motor-drivenTraverse: Polished rod-axletree style device of drop-out line, distance of drop-out line, drop-out line changeable. Checking by wire-off: Digital display, length-enactment auto-stopThe height of main axis from groud: 700mmMachine outside shape size: 2850× 1500× 1660Net weight of machine: 2800kg\
