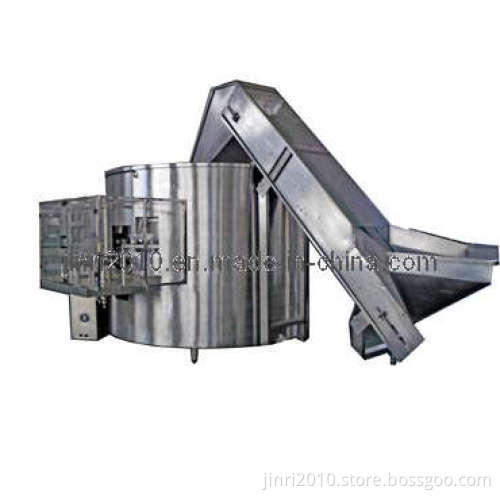

Bottle Unscrambler (LP-12)

Bottle unscrambler LP-12Torque limit part is designed for the main motor reducer so as to protect the machinery if malfunctions occur.2) Two put-casts in one cycle ensure that every work location should be with one bottle, which enhances bottle output efficiency.3) The bottles are neck locked through the air conveyor so as to avoid overturn in delivery.4) Dilapidated bottles will be eliminated by a special device.5) A lock detector is equipped for alarming; When locked, the machine will automatically stop.6) A photoelectric switch is set for starting when there are bottles and stopping when there are no bottles.7) An oil pump will readily fill up the gears, bearings and the cams8) there are maintenance doors and mould replacement door which makes the maintenance is convenient.9) The main electrical components are world reputed brands, Such as transducers, PLC, photoelectric switch and relays are from MITSUBISHI, OMRON and Siemens.10) The outer tank\revolving tank and the parts which touch bottles directly are all made of stainless steel AISI304. Frame part adopts high-grade carbon jointing.Model: LP-12Working location: 12PCSCapacity: 6000b/hMaximum capacity: 8000b/hAir supply pressure: 0.7MpaAir consumption: 1.5m3/minSuitable bottle: Diameter-50-96mm, height 165--310mmMain motor power: 1.5kwBottle elevator power: 0.75kwDimension: Φ 1660X2060mmMachine weight: 2000Kg
