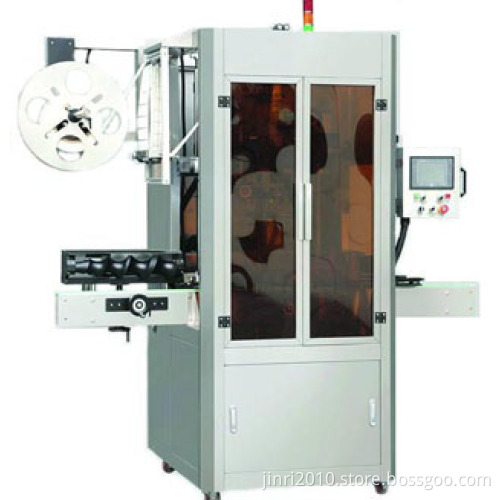

Labeling Machine (PM-300)

Labeling machine PM-300Its transmission system works synchronously, and it is easy to change transmission belt.Cutter base is suitable for bottles with diameter from 30mm to 250mm. And it is no need of changing this foundation.The label holder is put at middle height, which is convenient for setting label rolls. It is controlled by micro-computer, label can be checked and located automatically.Feeding label device: Motion type synchronous tension controls the feeding of labels, the diameter of label holder is 500mm. Label feeding is steady, the tension design makes sure precision of feeding and casting labels and cutting labels precisely.The cutter is driven by stepping motor, which makes cutting precisely, cutting line neat. When it works with label synchronous location system, the precision of cutting location can be 1mm.Model: PM-300Capacity: 300bottles/min.Bottle body diameter: 28mm--120mmLabel length: 30mm--250mmLabel thickness: 0.03--0.13mmInner diameter of paper tube: 5''---10''Power: 380V/220VAC 3kwOverall dimension: 2100LX1100WX2000H(mm)Operation: Touch screenControl: PLC MITSUBISHI.
