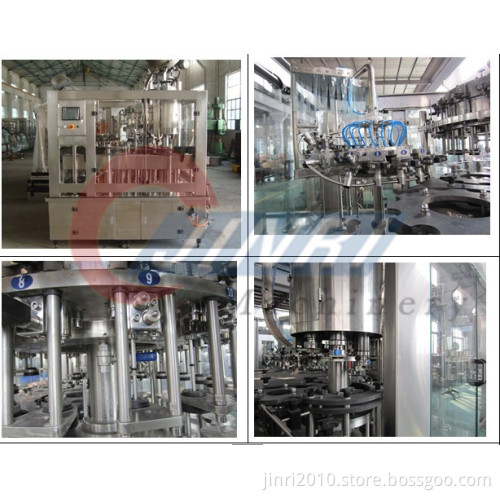

BCGF14-14 Beer Filler Equipment

1. IntroductionThis machine is my company's introduction of German technology, combined with the characteristics of beer production industry, designed to develop small-scale beer filling equipment. The machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection sterilization and other functions. Structural Features: 1. The rinsing machine using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean. 2. Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features. 3. Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time. 4. Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic unloading, reducing the rate of broken bottles. 5. Before the capping, use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than 0.15mg / L. 6. Filling machines includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device. 7. With perfect CIP cleaning function, and capable of rinsing filling pipes with acid, lye liquid and hot water. 8. All the materials in contact with the valves, tanks, pipes are made of stainless steel 304 materials, inside and outside the wall of mirror-polished, ensuring it is healthy. 9. Manually dry oil lubrication system to make sure equipment maintenance is more convenient. 10. The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; No cap no operation, and other security protection. 2. Main technical parametersWashing heads: 14 (diameter: φ 595)Filling valve heads: 12 (diameter: φ 510)Capping heads: 4 (diameter: φ 170)Bottle size: 500ml Capacity: 1500-2000 bottle per hour(500 ml), Applicable bottle: Bottle height 200~350mmDiameter Φ 52~Φ 84mmAseptic air consumption: 0.4m3/min(0.4~0.6Mpa)CO2 consumption: 15g/100LWater consumption including: Vacuum pump: 0.15m3/h; Blowing: 0.3m3/hOperating voltage AC: 380VControling voltage DC: 24VPower: Main motor: 2.2 KWSpray pump: 0.37KW Filling machine: 0.55KW Vacuum motor: 1.1KWHopper motor: 0.18KWElectric Chain motor: 0.37KW Overall dimension: 1900× 1700× 2500mm(L× W× H)Weight: 3000 Kg3. Main equipments1, Water pump: South2, On-off: Delixi 3, Touch Screen: Weinview Taiwan4, Inverters: Mitsubishi Japan5, PLC controller: Mitsubishi Japan6, Transformer: Domestic7, Contactors: Schneider France8, Circuit breakers: Schneider France9, Switch: Omron Japan10, Proximity switches: Autonics Korea11, Photoelectricity: Omron Japan12, Material: 304 stainless steel
