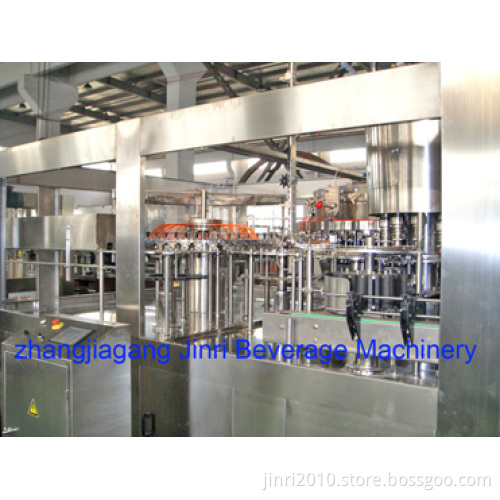

Carbonated Drink Filling Machine (DCGF404010)

Carbonated water bottle filling machine DCGF seriesJR-DCGF series 3in1 unit combines rinsing, filling and capping with complete automation, suitable for non-carbonated dirnk. Conveyor height is adjustable, and the whole process is set up with alarm device in case the bottle is jammed, lacking, missing and over loading. With complete system highly automatic, mechanically sound, and very easy to operate, it meets the food hygiene standards with optional capacity from 2000b/h to 36000b/h.DGCF40-40-12 washing , filling , capping machine is used for PET bottles ,and carbonated beverage of special equipment, unique clamping bottle filling technology, frequency control, automatic tank level control, equal pressure filling , etc. It adopts constant pressure into the fluid, and match the mixer perfectly, to avoid boiling, material inequality of production problems, contact with the material part of the materials are stainless steel: pipe system control components are imported auxiliary equipment.Introduction of equipment:1).Rinser : Rotary type,overturning washing bottle;rinsing bottle time can be adjusted;sterile water washing ;or decided to use washing media by user,working steady, plum blossom nozzle, washing bottle is very clean.   2). Filler a.PLC control,frequency control of motor speed,human-machine interface touch screen operation, card, bottle, and equal pressure filling technology;Advanced level of beer filling valve, constant pressure into the liquid theory, fill the electrode control exhaust pressureb,Feeding liquid line pressure control automatically detected.3) screw capping machinea.Screw lid up and down movement is achieved by the cam screw cap, screw cap does not turn the cam is fixed.b.Horizontal grounds covered hopper can effectively guarantee the management process covers not cover damage, anti-installed on the hopper lid automatically remove the body, simple structure, reliable performance.c.Transported by the slide cover plate to take cover, then take the cover plate into the screw head cover, take cover to ensure accurate and reliable.d. cover the amount of storage hopper with automatic transmission cover-machine interaction.e. In the range of rated output capacity , which can be adjusted by the inverter.f.  Bottle height change can be manually adjusted screw to liftg. Capping head by magnetic screw cap, size can be adjustable by magnetic force. Model:   JR-DCGF404010Rinsing:   40heads,   filling:    40heads,   capping:   10headsCapacity: 10000b/h (500ml)Rinsing water:    Aseptic waterFilling temperature:    0-5degreesBottle shape:    Round, square, oblate, etc.Bottle diameter:    50--100mmBottle height:   150--310mmPower:   7.5kwDimension: 4800× 3800× 2800mm(L× W× H)Weight: 5000Kg
