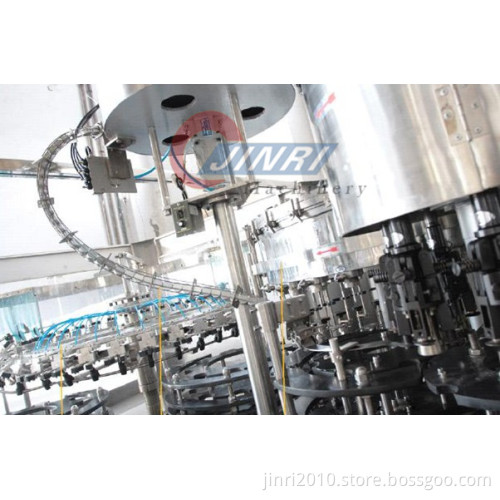

Wine Glass Bottle Filling Machine (HAJ14124)

Main Features This machine adopts taking bottle bottom conveying structure and filling valve lift, so to make the line more reliable transport bottles. Different bottle type simply adjusts the height of bottle washing bottle, filling, capping and a small amount of change parts. So changing bottle more efficient, labor-saving; This machine uses negative force filling and posseses the advantages of fast filling positioning and high accuracy liquid level surface; Spring-loaded clamp hand washing, empty bottles with the track automatically turn 180 degrees to washing bottle with high efficiency; The machine adopts a four knives of aluminum cap, two knives is capping thread, two sealing the bottom edge of cover and does not damage cover, reliable tight seal; Rotary cap sorter with air power caps sorting is used to not damage no damage the cover surface, Feeding bottle uses bottle screw, so make the whole machine operation more stable. Main purpose and Applicable scope Mainly used in all kinds of wine filling and sealing for glass bottles and aluminum cover 2. Technical featuresCapacity: 6000B/H (0.75L)Applicable bottle type: Glass bottleBottle size: 200ml, 450mlMaterial: All parts contacting with the liquid is SS304Applicable bottle diameter: D=50~92mmApplicable bottle height: H=150~320mmNumber of heads: Rinsing head: 24 filling heads: 24 Capping heads: 8Power: Main motor: 2.2KWHopper motor: 0.37KW transporting motor: 0.75KWWorking voltage: AC 380V Spraying pump: 0.37KWControl voltage: DC: 24V vortex air pump: 0.75KWFilling pump: 0.75KWWater consumption(rinsing bottle water): About 1.5m³ Water pump: 0.4MPaDimension: (L× W× H): 2210× 1650× 2750mmWeight: About 3500KG3. Main Electrical Configuration: NameBrandModelPlace of OrigionTouch ScreenMitsubishiMT-1000JapanPLCMitsubishiFX-1SJapanTransducerMitsubishiD700 2.2KWJapanSwitching PowerMeanWellS-50-24TaiwanTransformerDELIXIBK-100ChinaBreakerSchneiderDPN 20A(3P)FranceBreakerSchneiderDPN 20A(1P)FranceAC ContactorSchneiderLC1-DO610France Filling partsCapping parts
