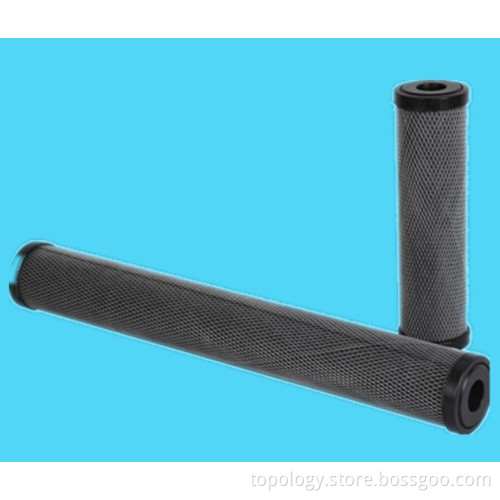

Carbon Fiber Filter Cartridge (WATER FILTER CARTRIDGE)

Specification
Activated Carbon Filter Cartridge is a kind of material structure which has the dual adsorption of active carbon. It is used for in-depth filtration, which is composed of cellulose and active carbon powder. The center core is bound with the lining covered by precision fiber filter medium and active carbonfiber cloth. When liguid goes through the fiber medium, the outer in-depth fiber strucure can block the contamination particle and the active carbon on the cloth can get rid of the stink, sediment, pigment, volatile organism (VOC) and orginc chemical compounds.

The inner fiber layer of filter medium can block the carbon particle and tiny contaminations, which can guarantee the good quality and complete procedure of filterinig.

Application
For medical water
For surface preparation, electroplating solution
For camera developer
To get rid of the oil and aromatic in liquid
To get rid of the free chlorine and VOC in liquid
To get rid of stink, sediment, organic pigment in liquid
To get rid of organic chemical compounds in liquid

Filtration Efficiency Value
Specific Surface Area: M2/g 850
Adsorptive Value of Benzene: Mg/g 270
Adsorptive Value of Iodine: Mg/g 800
Decolor Value of Methylene Blue: Mg/g 100
Thickness: Mm 2

Structure and Material
Activated Carbon Type Coconut Shell Based Activated Carbon
Inner Core Polypropylene
Coating Layer of Inner Core Polyester
Outer Carrier Net Polyethylene
Endcap PPR(Food Grade)

Design and Operating Parameters
Pore Size 5um
Maximum Operating Temperature 52° (125F)
Maximum Differential Pressure 3.45Bar(50 psid)
Recommended Change-out Differential Pressure 2.07Bar(30psid)
Breaking-out Differential Pressure 5.17Bar(75 psid)

Products Code Table
Length: 10M: 250± 1.5mm/10I: 10''(254± 1.5mm)/20M: 500± 1.5mm/20I: 20''(508± 1.5mm)
OD: 25: 2.5''(63.5mm)/45: 4.5''(115mm)
