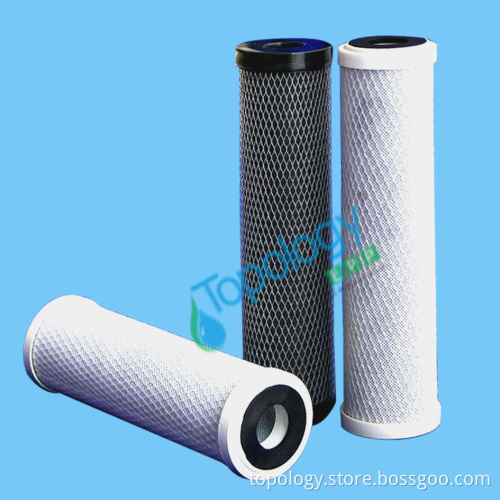

Activated Carbon Fiber Filter Cartridge

SpecificationActivated Carbon Filter Cartridge is a kind of material structure which has the dual adsorption of active carbon. It is used for in-depth filtration, which is composed of cellulose and active carbon powder. The center core is bound with the lining covered by precision fiber filter medium and active carbonfiber cloth. When liguid goes through the fiber medium, the outer in-depth fiber strucure can block the contamination particle and the active carbon on the cloth can get rid of the stink, sediment, pigment, volatile organism (VOC) and orginc chemical compounds. The inner fiber layer of filter medium can block the carbon particle and tiny contaminations, which can guarantee the good quality and complete procedure of filterinig. ApplicationFor medical waterFor surface preparation, electroplating solutionFor camera developerTo get rid of the oil and aromatic in liquidTo get rid of the free chlorine and VOC in liquidTo get rid of stink, sediment, organic pigment in liquidTo get rid of organic chemical compounds in liquidFiltration Efficiency ValueSpecific Surface Area: M2/g 850Adsorptive Value of Benzene: Mg/g 270Adsorptive Value of Iodine: Mg/g 800Decolor Value of Methylene Blue: Mg/g 100Thickness: Mm 2Structure and MaterialActivated Carbon Type Coconut Shell Based Activated CarbonInner Core PolypropyleneCoating Layer of Inner Core PolyesterOuter Carrier Net PolyethyleneEndcap PPR(Food Grade)Design and Operating ParametersPore Size 5umMaximum Operating Temperature 52° (125F)Maximum Differential Pressure 3.45Bar(50 psid)Recommended Change-out Differential Pressure 2.07Bar(30psid)Breaking-out Differential Pressure 5.17Bar(75 psid)Products Code TableLength: 10M: 250± 1.5mm/10I: 10''(254± 1.5mm)/20M: 500± 1.5mm/20I: 20''(508± 1.5mm)OD: 25: 2.5''(63.5mm)/45: 4.5''(115mm)
