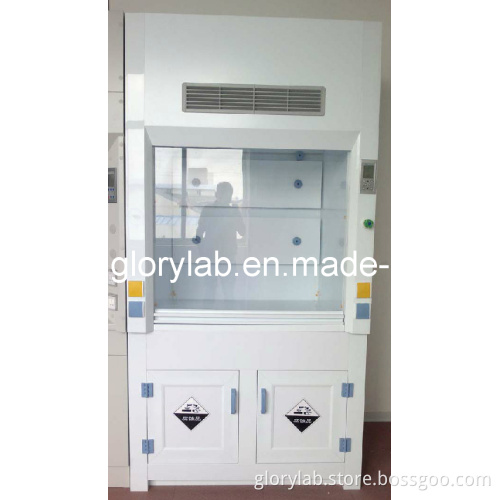

2014 New Type of PP Fume Hood (JH-F007)

Our fume hoods has been tested by SGS and got approval, it ensures the safety features of our products. Dimensions(W× L× D): 1200/1500/1800X850X2350mmWindow: 1.1 whole piece of 5mm thick tempered safety glass sashes in a stainless steel frame, able to sliding laterally in the frame and vertically with the frame. 2. Frame balanced from elevation and sides so as it can be stopped at any position by pulling up or down. Exterior Structure: The structure is made from imported PP board, which is excellent chemical and alkaliResistant. It is 8mm thick, and is good impact resistant and non-corrosive. Interior Claddings: It's made from the imported 8mm PP board. Working table: The worktop is made of 16mm thick PP. Lighting: 30W fluorescent tubes with the PP cover for the lighting. External control /operation: 1. Two sets of 220 volt/ 10 AMP electric socket outlets and light and fan on/off switches. 2. Yellow brass, epoxy resin coated water control valve. 3. Yellow brass, epoxy coated gas control valve. Storage Cupboard: 1.4 double walled doors made from the imported 8mm PP board. 2. High quality outside hinge. 3. Single gas faucet made of yellow brass and treated with epoxy backed paint. 4. PP United Cup, resistant to acids, alkali and organic impregnations. Face velocity: It's 0.4-0.6m/s when we open the sash at 24''. (when the sash is fully opened). Remark: 1. We can furnish fan and duct if it's required by customers. 2. The standard type of control panel is touchable one, also LCD monitor is available for your selection. 3. We can furnish custom-built fume hood based on customer's requirement.
