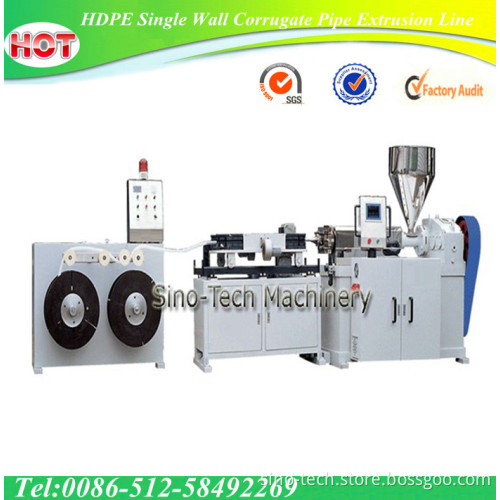

PP HDPE Single Wall Corrugated Pipe Extrusion Line/Extruder Line
- Payment Type:
- L/C, T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | L/C, T/T |
Product Description
Product Description
Product Description
Machine: HDPE single wall corrugate pipe extrusion line/extruder lineProduct DescriptionThe line shall be used to produce small diameter single wall corrugation pipe in PVC, PP and PE raw material.Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die;Used as wire and cable passing pipe, washing machine drain pipe, dust collector pipe and ventiduct;Small size corrugation pipe of 4-6.7 are used in car.
| Model | RJ-50/70 | RJ-50 | RJ-25 | RJ-10 |
| Model of extruder | SJ65×33 | SJ65×33 | SJ45×30 | SJ30×30 |
| Quantity of mold blocks | 70 | 50 | 42 | 42 |
| Total Power | 67KW | 65KW | 50KW | 45KW |
| Pipe size | φ16~50 | φ16~50 | Φ8~20 | Φ6~10 |
| Max. speed | 17m/min | 14m/min | 12m/min | 10m/min |
Technical Parameter of PVC Single Wall Corrugated Pipe Production Line
| Model | RJ-50/70 | RJ-50 |
| Extruder Model | SJSZ-51/105 | SJSZ-51/105 |
| Quantity of mold blocks | 70 | 50 |
| Total Power | 42KW | 40KW |
| Pipe size | φ16~50 | φ16~50 |
| Max. speed | 20m/min | 17m/min |
