Plastic Bottle Screen Printing Machine
- Payment Type:
- L/C, T/T, Western Union
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Made in China |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description

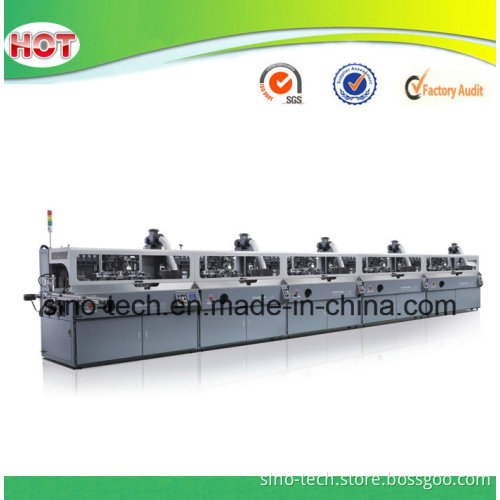

Plastic bottle screen printing machine
The machine is multi-color automatic screen printer with multi-function. The innovative transmission system is very steady in passing the bottles, easy to shift between different types of bottles, easy to operate. It will widely accepted by the small-medium enterprises due to its high quality price ratio. Application: plastic tube, cosmetic bottles,milk bottles, medical bottles, drinking bottles, pen sleeves and etc.
Parameters:
Printing speed: Round 4000pcs/hr Oval 5000pcs/hr
Printing size:Round Dia 20-100mm Length 25-300mm
Oval Width 25-120mm Length 25-300mm
Compressed air:0.6Mpa
LPG:0.15Mpa
Machine size: Main/Aux 1908×1000×1500mm
Unit Power:Voltage 380 VAC , 3-PHASE,50HZ
UV Machine power 5KW
Motor Power 1.5KW
Features of main devices
1. Controlled by microprocessor,easy operation,running stably and accurately.
2. Cast aluminum machine frame,low weight and high idensity,adjust convenient.
3. Separate adjustment of the pad up/down stroke speed.
4. Ink scraper is auto balance keeping in printing.
5. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
6. Ink cup is turnable and adjustable in vertical and horizontal direction.
7. With super long slide stroke to print large size workpiece.
