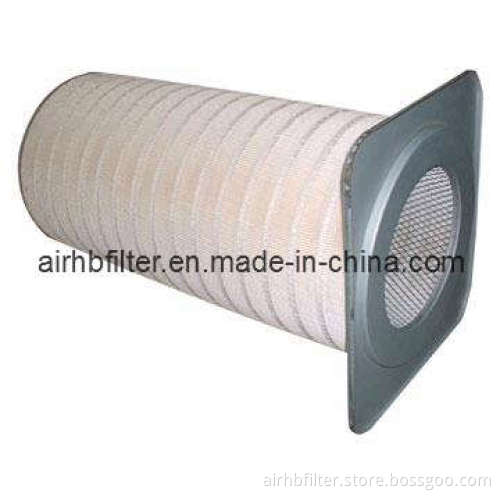

Air Inlet Filter for Gas Turbine

Gas Turbine Filter Features;Square Flange Filter Cartridge for GT and Air Compressor Inlet Filter System Constructions: 1) Top cap: 363 x 406mm 2) End cap: 324mm 3) Length: 660mm 4) Filter media: 100% cellulose or 80% cellulose / 20% polyester blend 5) Source of media: USA, Finland or China 6) Pleats: 280 7) Steel mesh: Inner and outer 8) Hot melt spiral beading to maintain full filtering surface area Both the size of the cartridge and the shape of the caps are available in various specifications. All configurations are changeable to meet the optimum performance of your applications. Please contact us directly for more technical informationPerformance Description:1. Wider pleat width2. High filtration efficiency3. HV material4. Large air flow5. Top open, bottom open/ bottom closed with deflating bolt hole6. Galvanized stainless metal configuration7. Rubber seal8. Choose the three grade filtration if the application field needs, and choose showerproof stepped Flashing or pre-filtration cloth in the pre-filtration
