PSA Nitrogen Generation System for High Purity N2

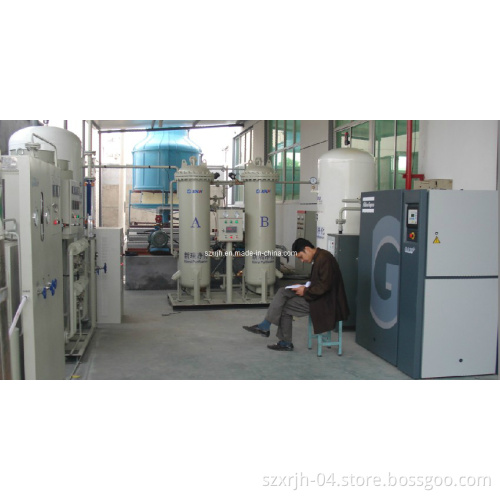

AchievementOur PSA nitrogen generation system can produce nitrogen with purity of 99.9995%, combined with purifying device of XRDC series. Technological ProcessNitrogen Generators from our company are designed and manufactured based on the principle of Pressure Swing Adsorption(PSA). Ambient air, having being compressed and purified to remove oil, water and dust, enters the adsoption swing adsorping device with two adsorption towers filled with carcon molecular sieve(CMS). The compressed air flow to the adsorption tower from the bottom to up. In the process, oxygen molecular is adsorbed, while nitrogen flows out of the upper side of adsorption tower and then enters then buffer tank for impure nitrogen. After a period of time, the CMS in the adsorption tower is saturated by the oxygen adsorbed. At this time, regeneration is needed. It is realized by stopping adsorbing step and reduce pressure in the adsorption tower. Adsorption and regeneration are conducted alternatively in the two adsorption towers to ensure the consecutive output of nitrogen gas. Connected to XRDC series, the nitrogen gas from PSA nitrogen generator can be purified with the purity reaching as high as 99.9995%. Components of PSA Nitrogen Generation SystemA full installation of PSA Nitrogen generation system is comprised of air compressor, air buffer tank, refrigeration dryer, filters, N2 generator, N2 buffer tank. Usually, clients can get the full installation from us, they can also buy each component and other optional supply like booster. If higher purity (99.999% or 99.9995%)of Nitrogen is needed, XRDC series of our company is a neccessity to be combined after the PSA nitrogen generation system. PSA Nitrogen Generation AdvantagesThe gas seperation of PSA takes such advantages as different gas has different adsorbing capacity in the CMS under different pressure to separate gases. PSA nitrogen generators are designed based on the PSA theory. They possess the properties of simple technology, low space requirement, quick start up, simple maintenance&operation, good applicability, high automation, low operation cost, low investment, etc. 1) convenient and efficient to generate nitrogen: Advance technology, special gas flow distributor to make the gas distribute more well-distributed, high efficient use of CMS, qualified nitrogen can be offered within 15 to 30 minutes. 2) Convenient use: The equipment structure is compact, low space coverage and no need of construction investment, low investment, the only thing to do is to connect power to generate nitrogen. 3) More economical than other ways of nitrogen supply: PSA technology is a simple way to generate nitrogen. It takes air as source, and the only energy consumption is only electricity consumption. So it has the advantages of low operation cost, low energy consumption and high efficiency. 4) Electromechanical integrated design to realize automatic operation: Imported PLC control the full automation, the flow rate, pressure and purity of nitrogen can be regulated and displayed consecutively; No personnel is needed to be on duty. NitEnhancement: To ensure the better quality, the main parts such as CMS and PLC, we use world famous brand Germany BF and Japan MITSUBISHIDelivery Details: Packaging details: Standard export packagingDelivery details: Within 60-90days after receipt of the deposit
