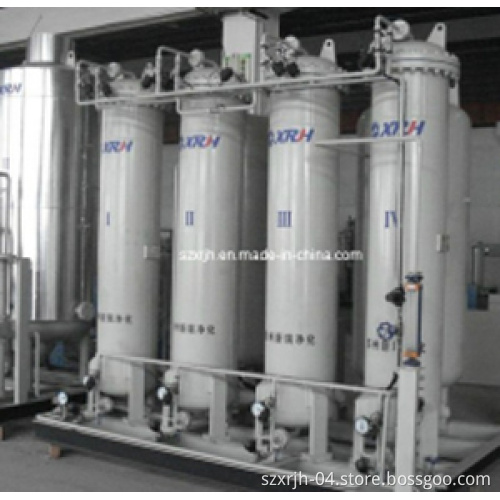

Hydrogen Generation by PSA (XRFH)

Main Technical Specifications: Gas Treatment: (10-500)Nm3/hAdsorption Pressure: 0.8Mpa-2.4MpaH2 Purity: 99.9-99.999%Dew Point: -60º CThe Principle of PSA Hydrogen GeneratorUnder certain pressure, take advantage of the adsorption bed composed of many absorbent like activated carbon, silicon dioxide, molecular sieve and alumina, the hydrogen generator selectively adsorbs the impure components in the gas source with hydrogen included such as dissociated methanol, gas released from synthesis ammonia pool, catalytic cracking dry gas in the oil refinery, shift gas, water gas and semi-water gas under pressure, while hydrogen which is difficult to adsorb is put out from the entrance of adsorption tower as the product gas. Therefore, hydrogen purification is realized. The Flow chart
