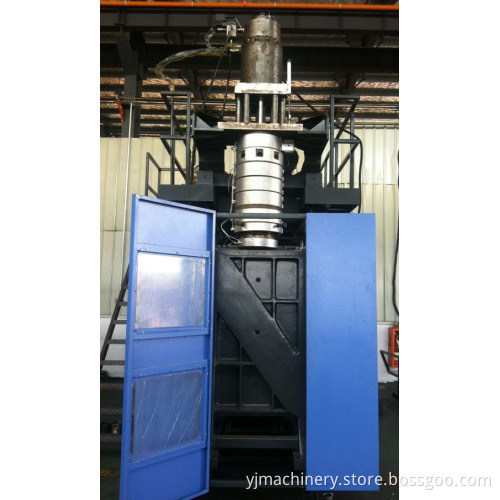

Plastic Blow Moulding Machine (YJBA90-60L)

Plastic blow moulding machineModel: YJBA90-60LAutomatic hydraulic extrusion blow molding machineScrew diameter: 90mm max. Volume: 60LAccumulator die head, with parison control systemSpecial clamping structure --energy savingJapan PLC and temperature moduleTaiwan touch screen(full color, bilingual)Excellent hydraulic and phneumatic valveMain Parameters Unit YJBA90-60LMax. Product Volume (L) 60Dry Cycle (PCS/h) 500Screw Diameter (mm) 90Screw L/D Ratio (L/D) 25Screw Drive Power (KW) 37Screw heating Power (3Φ KW) 21Screw Heating Zone (Zone) 4HPDE Output (kg/h) 140Oil Pump Power (KW) 18.5Clamping Force (KN) 350Mold Stroke (mm) 500-1200Max. Mold Size(W× H) (mm) 950× 900Accumulator Capacity (L) 6.6Max. Die Diameter (mm) 350Die Heating Power (4Φ KW) 17NO. Of Heating Zone (Zone) 4Blowing Pressure (MPa) 0.8Air Consumption (M3/min) 1.0Cooling Water Pressure (MPa) 0.3Water Consumption (L/min) 85Machine Size(L× W× H) (m) 5.1× 2.5× 3.9Machine Weight (Ton) 12.8
