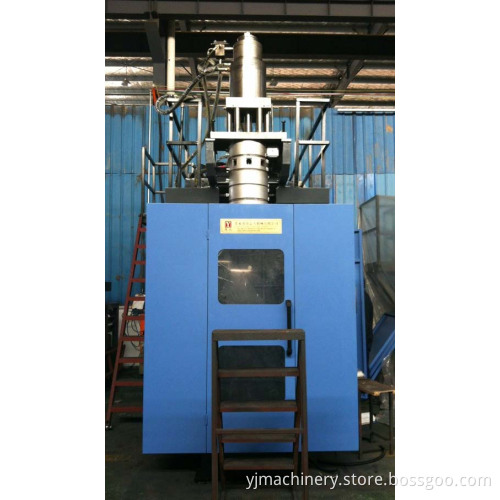

90L Plastic Blow Molding Machine (YJBA100-90L)

90L plastic blow molding machineProduct Name: Automatic Blow Moulding Machine (YJBA100-90L)Features: 1) Accumulator die head with parison control system2) Maximum capacity: 90L3) Screw diameter: 100mm4) Controlled by Japanese MITSUBISHI PLC5) Temperature controlled model6) Interactive bilingual monitor with machine-human interface7) Excellent imported hydraulic elements and electric elements8) Proportional control9) Design on Accumulator Head with Adjustable Core for Blow Moulding10) Hard gear surface reducerTechnical parameters: Main Parameters of YJBA100-90LMax. Product Volume: 90(L)Dry Cycle: 360(PCS/h)Screw Diameter: 100(mm)Screw L/D Ratio: 25(L/D)Screw Drive Power: 45(KW)Screw heating Power: 24(4Φ KW)Screw Heating Zone: 4(Zone)HPDE Output: 180(kg/h)Oil Pump Power: 22(KW)Clamping Force: 400(KN)Mold Stroke: 550-1350(mm)Max. Mold Size: 1000× 1000(W× H)(mm)Accumulator Capacity: 12(L)Max. Die Diameter: 430(mm)Die Heating Power: 20(4Φ KW)NO. Of Heating Zone: 5(Zone)Blowing Pressure: 0.8(MPa)Air Consumption: 1.2(M3/min)Cooling Water Pressure: 0.3(MPa)Water Consumption: 100(L/min)Machine Size: 5.5× 2.8× 4.5(L× W× H)(m)Machine Weight: 16(Ton)
