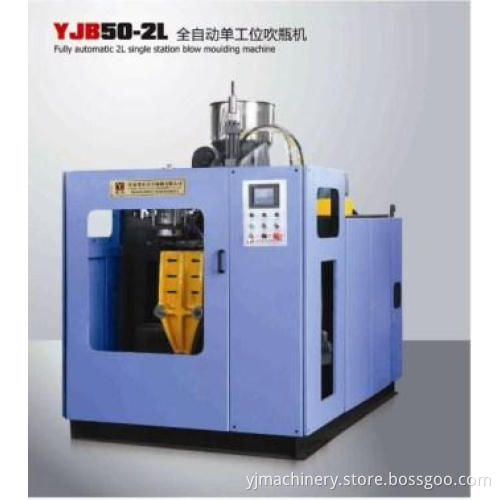

Extrusion Blow Moulding Machine (YJB50-2L)

2L Extrusion Blow Molding MachineApplicable Material PE, PP...Max. Product Volume One die head for 2LDry Cycle 2000 PCS/hMachine Size 2.4× 1.5× 2 (M)Machine Weight 2850KGTotal Power 23KWPower Consumption 12.2KW/HMachine Barrel Screw 50mm, L/D=22, Plasticizing 35Kg/HExtrusion Motor three phase (380V, 50Hz), 11KWCooling fan 3 zones 85WMax. Dia. Of Die Head 100mmClamping Force 30KNMold Move Stroke 128~368mmPlaten Dimension W× H: 300× 320mm, Mold thickness range 140~200(mm)Oil pump motor three phase a synchronism (380V, 50Hz), 5.5KWHydraulic valve imported hydraulic componentsSystem pressure 100kg/CM2Cooling Mode Water cool and oil cooler separatelyAir Pressure 0.7MpaAir Consumption 0.3M3/minWater Consumption 30L/minWater Pressure 0.2-0.6MPa
