Extrusion Blow Molding Machine (YJBA60-10L)

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China
Payment Type:	L/C, T/T

Product Description

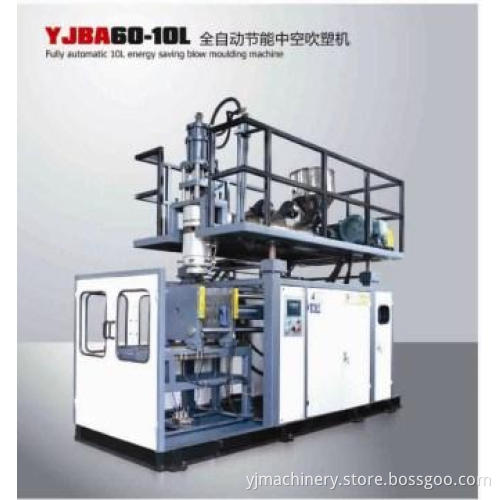

Extrusion blow molding machine YJBA60-10L
1) extrusion blow molding machine
2) Center input die
3) MITSUBISHI PLC+ Bilingual touch screen
4) Hi speed&efficient

Main Parameters Unit YJBA60-10L

Max. Product Volume (L) 10

Dry Cycle (PCS/h) 850

Screw Diameter (mm) 60

Screw L/D (L/D) 24

Screw Drive Power (KW) 15

Screw heating Power (3ΦKW) 6.5

Screw Heating Zone (Zone) 3

HPDE Output (kg/h) 70

Oil Pump Power (KW) 7.5

Clamping Force (KN) 80

Mold Stroke (mm) 280-642

Max. Mold Size (W×H)(mm) 345×580

Max. Die Diameter (mm) 180

Die Heating Power (4ΦKW) 7

NO. Of Heating Zone (Zone) 4

Blowing Pressure (MPa) 0.6

Air Consumption (M3/min) 0.7

Cooling Water Pressure (MPa) 0.3

Water Consumption (L/min) 50

Machine Size (L×W×H)(m) 3.2×1.4×2.7

Machine Weight (Ton) 5
