PPR Pipe Production Line (PPR20-63)

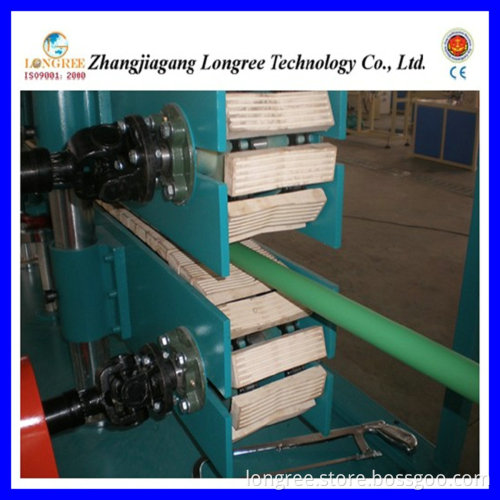

PPR pipe extrusion line1. Process flowRaw material + additive -- mixing-- vacuum feeding machine-- hopper dryer -- single screw extruder -- color code extruder -- mould and calibrator -- vacuum forming machine -- cooling tank --haul-off machine --cutting machine -- discharging rack. 2. Technical parameterModel SJ65/30-33 SJ75/30-33Pipe Dia. 20-63 63-160Screw Dia. 65, 33: 1, 30: 1 75, 33: 1, 30: 1Output 120kg/h 220kg/hLinear velocity(max) 10m/min 4m/minInstallation capacity 58kw 85kw3. Advantages of PPR pipes3.1. Good heat resistance. PPR pipe Vicat softening point of 131.5 degrees C. Maximum working temperature up to 95 degrees C, water supply and drainage to meet the construction specifications require in the use of hot water system. 3.2. Long service life. PPR pipe in working temperature 70 degrees C, working pressure (PN) 1.0MPa conditions, the service life can be up to 50 years; At room temperature (20 degrees C) service life can be up to 100 years. 3.3. Easy installation, connection. PPR has good welding properties, pipe, pipe fittings can be used hot-melt and fused connections, easy installation, the strength of its joints is greater than the strength of its own pipe.
