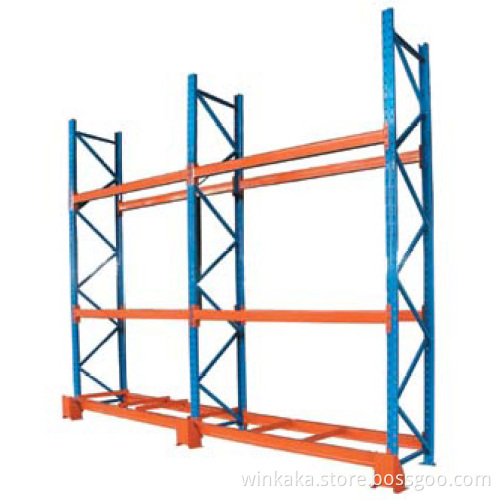

Warehouse Shelf (HY-202)

Features:

1) The most commonly used pallet racking configuration in the market
2) Ideal for warehouses, which need to keep a wide variety of products
3) Direct storage and access to all pallets
4) Easy stock control

System configurations:
1) Each system is mainly made up of upright frames and beams
2) Each frame consists of 2 uprights (posts), 2 footplates and bracings
3) Each storage level consists of 2 socketed beams
4) Each beam level usually supports 2 or 3 pallets
5) Supports Euro, Chep, or any non-standard pallet sizes
6) Different beam sizes are available for different load requirements
7) Beam levels are adjustable in 75mm pitch interval
8) All components are epoxy powder coated except the galvanized footplates
9) Standard colors: Upright in blue RAL5015, beam in orange RAL2004
10) Accessories include shim, upright protector, row spacer, pallet support, Half-pallet support

For inquiry, please provide the following information:
1) Pallet dimensions (L x D x H): E. G. 800 x 1, 200 x 1, 600mm
2) Upright frame depth & height: E. G. 1, 100 x 5, 800mm (D x H)
3) Max. Loading capacity per frame: E. G. 9, 000kg
4) Number of levels including floor: E. G. 4 levels
5) Beam length: E. G. 3000mm
6) Max. Loading capacity per level: E. G. 3 pallets x 1, 000kg/pallet
