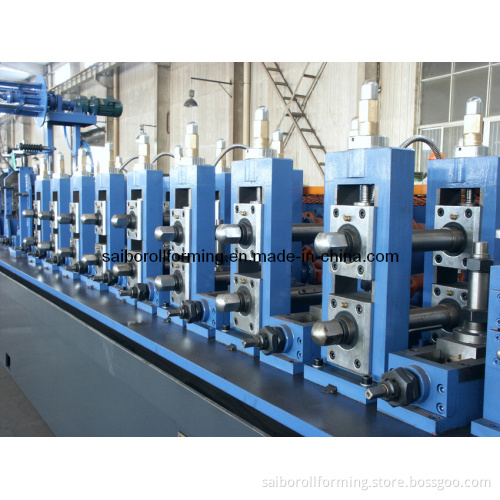

BG60 High Precision Machine Unit for Stainless Steel Welded Pipe

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

1.1 Summary: This equipment is specially used for producingΦ 25-Φ 63.5mm, δ 1.0-3.5mm stainless steel straight seam welded pipe. 1.2 Applicable material: (1)Material: SUS304, SUS306, SUS316(2)The thickness of steel strip: 1.0-3.5mm(As per GB708-88)(3)The width of steel strip: 80-200mm(± 0.2mm)(4)I. D. Of steel coil: 450-550mm(5)O. D. Of steel coil: 800-1200mm(6)Maximum weight coil: 2500kgs1.3 Dimension range of processing steel pipe: (1)O. D.: 21.3-63.5mm(2)Wall thickness: 1.0-3.5mm(3)Length: 4-8M1.4Product (steel pipe) process flow: Raw material (steel coil)--uncoiling--shearing and butt-welding---orming and shaping---TIG welding----Polishing burrs outside of weld seam----cooling----sizing--------roughly straightening------fixed length cutting------run-out table1.5 Milling speed: 1-8M/min1.6Product precision: Maximum tolerance of diameter± 0.15mm
