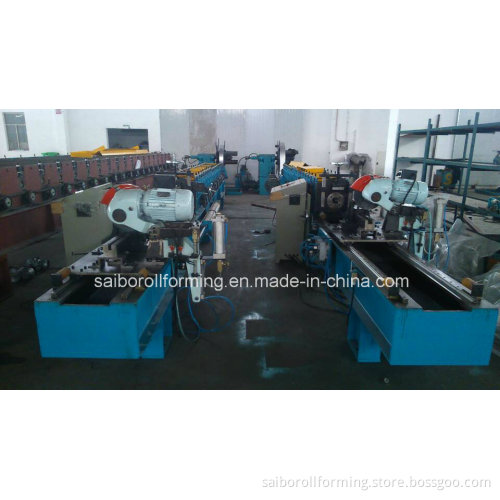

High Speed Square Pipe Roll Forming Machine Line

L Profile steel thickness between 0.3mm and 0.5mm, but machine can be roll maximal thickness in 0.6mmL Feeding system: Adjustable by hand wheelL Feeding width range: 150-160mmL Feeding roller: Diameter is ¢ 56mm, material is ASTM52100, HRC58-62egereeL Main motor power: 7.5kw, AC motor, side motor to save space (Brand: Guomao which made in China)L Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3PhaseL Roll station: 16stations (base on final design)L Roller material: Gcr15, 58-62, HRC hardness and chrome plated surfaceL Shaft diameter: ¢ 56mm material: SAE1045L Cutting after forming: Cut the sheet after roll forming to required lengthL Cutting Type: Fly-sawL Cutting: Continious cutting, no stop, speed can be up to 25m/minL Material of blade: Cr12, 58-62 HRC hardnessL Saw: 1 set. L Cutting power by air compressor (provide by byer)L Working power: 3KWL Length measuring: Automatic encoder length measuring, brand: OmronL The cutting sequence is also contained and controlled by the same PLC program installed on the above. L Tolerance of length: 3000mm+/- 1.5mm
