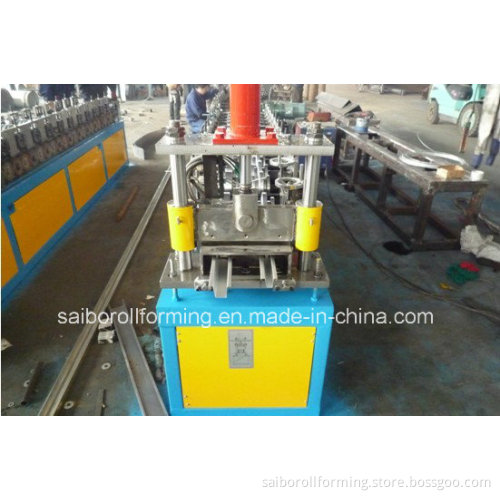

Light Steel Keel Roll Forming Machine-Double Row

Production Characteristic and useThis kind of machine has a small dimension, easy to carry. Products are widely used in decoration, interior decoration. Main Spec: 1. Type: Double row, one machine can produce two difference profile1rolling speed: 5-15m/min(not include cutting time)2. Rolling thickness: 0.4-1.2mm3. Control system: PLC (Panasonic)4. Un coiler: 1.5ton manual decoiler5. Gross weight of the machine: About 3tons6. Dimension: 4.5x1.2x1.3m7. The material width 78~138mm, 80~140mm8. Effective width: 20mm, 22mm9. Roller stations 9 stations11. Roller material 45#forge steel, coated with chrome12. Shaft diameter 65mm, material is 45# forge steel13. Maim motor power 5.5kw14. Hydraulic station power 3kw15. Hydraulic pressure 12mpa16. Material of cutting cr12MOV17. Tolerance 3m+-1.5mm18. Electric source 380V, 50Hz, 3 phase19. Color of the machine yellow and blue20. Container need 1 x20 feet
