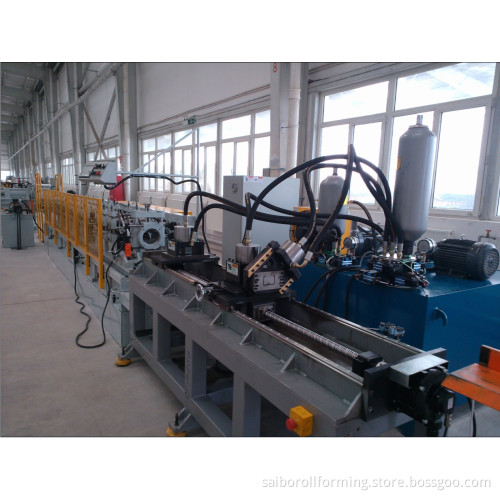

High Speed Montante Roll Forming Machine

1. Suitable plate of the rolling: Galvanized steel, with thickness 0.3~0.7 mm, 2. Forming speed: 70m/min (including continuous cut and punching)3. Forming stations: 13stations4. Roller material: D2, with heat treatment and chrome plating on surface, diameter of axis is 60mm5. Material of principal axis: #45 advanced steel, with heat treatment...Diameter is 60mm6. Cut-off system: Hydraulic cutting, cutting after forming 7. Hydraulic power: 2.2 KW8. Control system: The whole machine is controlled by PLC systemPLC: SimenzTouch screen: SimenzRotating coder: OmronTransducer: Omron9. Bearings is SKF from Japan10. Motor: Main motor is 4kw, reducer is 3kw, hydraulic is 2.2kw, servo is 3.9kw11. Dimension is 11m from decoiler to cutter. The table is 4m long more12. Driven by gearbox13. Motors 220V, 60Hz14. CD for Programme15. One station with `Ananda` information
