Keel Steel Roll Forming Machine (Double Row)

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China
Payment Type:	L/C, T/T

Product Description

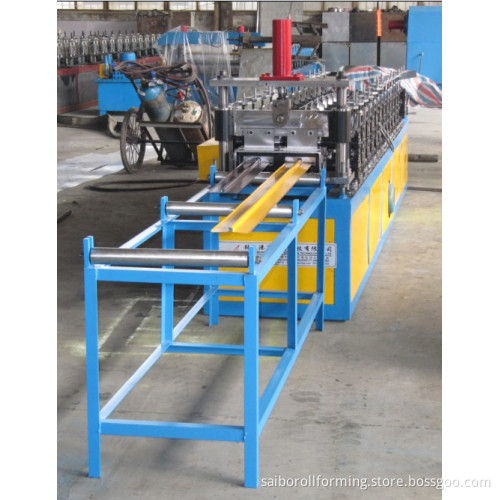

Steel keel roll forming machine
1. Brief introduction:
A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.
2. Main technology parameter:
1. Size of sheet: Depend on client request
2. Working speed: 12m---15m/min(not including cutting time)
3. Roll station: 15 stations
4. Material of roller: 45# forge steel, polished and coated with chrome
5. Material of main: Shaft45forge steel, shaft dia is 85mm
6. Main power: 22kw (2*11kw)
7. Hydraulic station power: 5.5Kw
8. Hydraulic pressure: 20 Mpa
9. Control system: PLC Panasonic
10. Size of machine1: 7000x8000x1000mm
11. Material of the cutting sword: Cr12MOV
12. Pressing thickness: 0.81.5mm
13. Tolerance of length: ± 2 mm
14. Driving mode: 1 inch single line chain item
15. Pressing material: Q195 Q235
